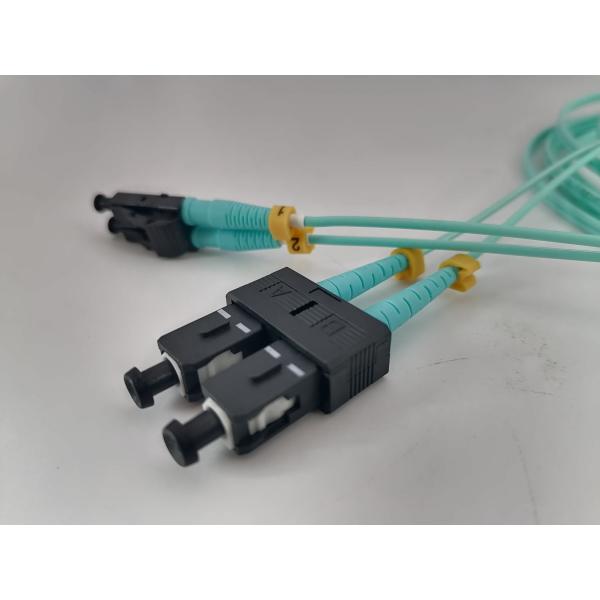

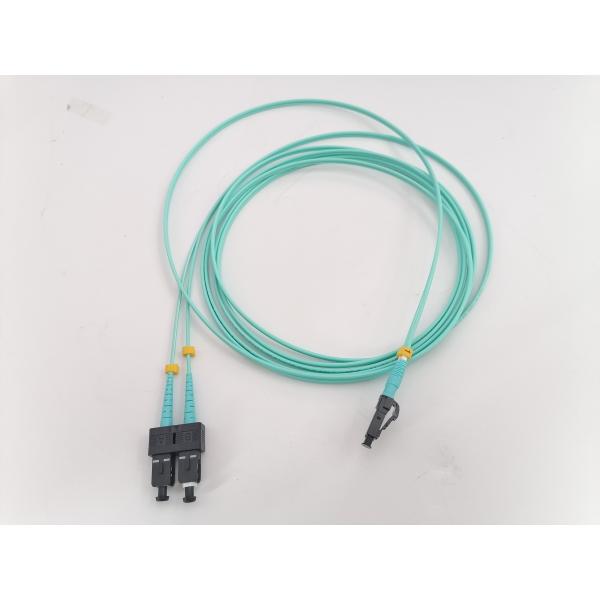

2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
SC to LC Duplex Patch Cord
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
PE bag
Product :
SC to LC Duplex Patch Cord
Fiber Type :
Multimode OM3
Connector :
SC/LC
Cable Jacket :
LSZH
Jacket Color :
Aqua
Length :
3M
Description

OM3 Multimode 50/125um SC to LC Duplex Patch Cord With Black Connector body 2.0mm 2M

Single mode and multi mode SC fiber optic patch cables, SC-LC, SC-ST, SC-FC, SC-MU, SC-MTRJ, SC-E2000, 9/125μm, 50/125μm, 62.5/125μm, SM, MM, simplex, duplex, UPC, APC, PC. Customized design cables are available.

Features:

100% tested on optical performance
Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request
Cable outer jacket available in PVC, Low Smoke Zero Halogen (LSZH)
PC, UPC, APC connectors type available
High concentricity 2.5mm ceramic ferrule for FC, ST, SC and 1.25mm ceramic ferrule for LC and MU
Available in G652D, G657A, OM1, OM2, OM3 and OM4
Position A/Position B markings

Available in 0.9mm, 1.6mm, 2.0mm, 3.0mm sizes

Application:

Telecom network
Ethernet network
Optical communication equipment

Item SM MM
Link Type FC/PC FC/UPC FC/APC FC/PC
SC/PC SC/UPC SC/APC SC/PC
ST/PC ST/UPC 　 ST/PC
LC/PC LC/UPC 　 LC/PC
MU/PC MU/UPC 　 MU/PC
Return Loss ≥45dB ≥50dB ≥60dB ≥35dB
Insertion Loss ≤0.2dB
Operating Temperature -40°C ~ +80°C
Repeatability ≤0.1dB
Interchangeability ≤0.2dB
Insertion and Pull Times 1000

2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord2.0mm 2M OM3 Multimode 50/125um SC To LC Duplex Patch Cord
