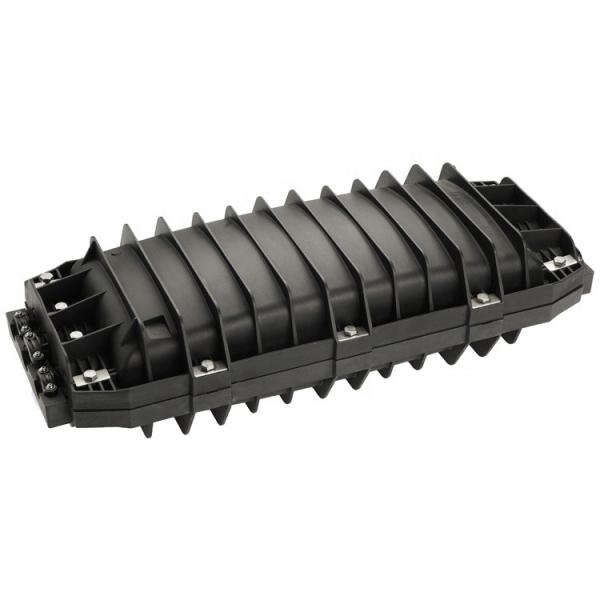

288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
288core FTTH Horizontal PP GF Optical Fiber Enclosure
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
GPJ09-6601
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Carton box
Product :
FTTH Mechanical Seal Outdoor In-line/ Horizontal Optical Fiber Enlosure 288 Core
Material :
PP+GF
Tray Capacity :
288
Sealing Type :
Mechanical Seal
Ports :
4 Side Ports, 2 Middle Ports
Protection Grade :
IP68
Style :
In-line/ Horizontal
Installation :
Aerial/ Bracket Mounting/ Duct Mounting/ Handhole/ Manhole
Description

FTTH Mechanical Seal Outdoor In-line/ Horizontal Optical Fiber Enlosure 288 Core features 6 ports and huge splice fiber capacity, enabling the easy cable branching and direct connection. The IP68 closure housing made from strong engineering plastics works well under severe weather conditions. The performance of the ports for cable re-entrance is also excellent. The enclosure accepts aerial, racket mounting, duct mounting, handhole and manhole applications.

Features:

Ports: 4 side ports(Φ10-20 mm), 2 middle ports(Φ16-28 mm)

Capacity: 288

Seal: Mechanical

Waterproof: IP68

Material: PP+GF

Applications:

Aerial, bracket mounting, duct mounting, handhole, manhole

Specification:

Style
In-line/ Horizontal
Dimensions (L×W×H)
533×209×104 mm
Material
PP+GF
Sealing Type
Mechanical Seal
Protection Grade
IP68
Cable Ports
Side
4
Φ10 - Φ20 mm
Middle
2
Φ16 - Φ28 mm
Fiber Splice Capacity
288
Tray Capacity
12
Tray Count
24
Weight
6.5 - 7.5 kg
Application
Aerial/ Bracket Mounting/ Duct Mounting/ Handhole/ Manhole
Packing Type
Inner Carton
660×280×180 mm (1 PCS)
Outer Carton
680×580×400 mm (4 PCS)

288core FTTH Horizontal PP GF Optical Fiber Enclosure288core FTTH Horizontal PP GF Optical Fiber Enclosure
