Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use
Specifications
Brand Name :
UNIFIBER-OEM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Connector :
LC SC FC ST
Fiber type :
G652D G657A
Fiber Count :
4/6/8/12 fibers
Pigtail color :
12 colors
Price :
Negotiable
Description

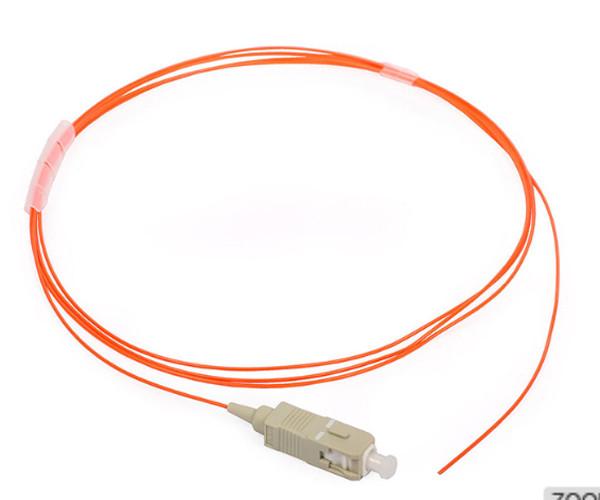

SC fiber optic pigtail, multimode , 900um buffer

Unfiber offer kinds of pigtails, such as standard type LC, FC, SC, ST, MU, MTRJ, MPO, D4, DIN, SMA, E2000, ect, also provide bundle multi-fiber pigtails.Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.

Telecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To UseTelecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To UseTelecommunications SC Fiber Optic Pigtail Multimode 900um Buffer Easy To Use

APPLICATION

1. Telecommunications

2. CATV, LAN, MAN, WAN, Test &Measurement

3. Military industry

4. Medical

FEATURES

1. Low insertion loss and back reflection loss

2. Ferrule end surface pre-domed

3. Excellent mechanical endurance

4. Good in repeatability

5. Good in exchange

6. Green Production, CE, RoHS Standard

Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) ＞1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm
