Specifications
Brand Name :
UNIFIBER-OEM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, Western Union
Price :
Negotiable
Model Number :
MTP MPO
Supply Ability :
10000pcs/day
Delivery Time :
5-8days
Packaging Details :
PE bad or caton box
Fiber Count :
8/12/24/48/72/96/144
Fiber type :
SM/MM/OM3/OM4
Cable length :
0.5/1/2/3m or Customized
Cable Jacket :
PVC,LSZH,Plenum (OFNP)
Description

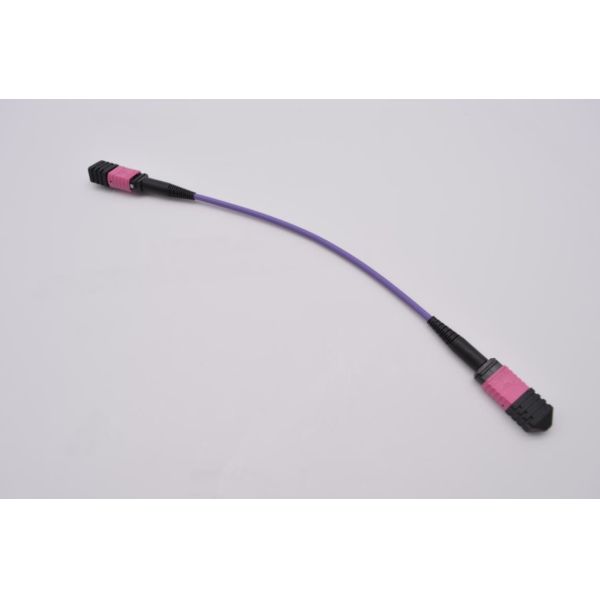

MTP to MTP patch cable,mtp to mtp cable with mtp apc connector 12 24 strand fo patch cord, data center solution provider

MTP /MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre.
APPLICATION
High density architectures
Storage area networking fiber channel
Data communication network
Optical System Access network
FEATURES
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available
Supports 40G and 100G network applications
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Jacket material: LSZH, OFNR, OFNP available

Parameters

MPO Connector Standard SM MT Ferrule Low Loss SM MT Ferrule Standard MM MT Ferrule Low Loss MM MT Ferrule
Polish APC PC APC PC PC PC
Insertion Loss(dB) Typical 0.5 0.5 0.3 0.3 0.5 0.3
Maximun 0.7 0.7 0.5 0.5 0.7 0.5
Return Loss(dB) 60 45 60 45 20 20
Exchangeability(dB) ≤0.3
Durability(dB) ≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength(dB) ≤0.3dB (Max 66N)
Operating temperature(℃) -20~+60
Storage temperature(℃) -40~+80
