Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
GJFJBV
Certification :
ROHS,CE,UL
Place of Origin :
CHINA
MOQ :
1KM
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
Wooden drum.
Price :
Negotiable
Supply Ability :
100km/month
Delivery Time :
5-8days
Fiber counts :
2core
Cable structure :
Duplex zipcord
Cable jacket :
LSZH or PVC
Cable color :

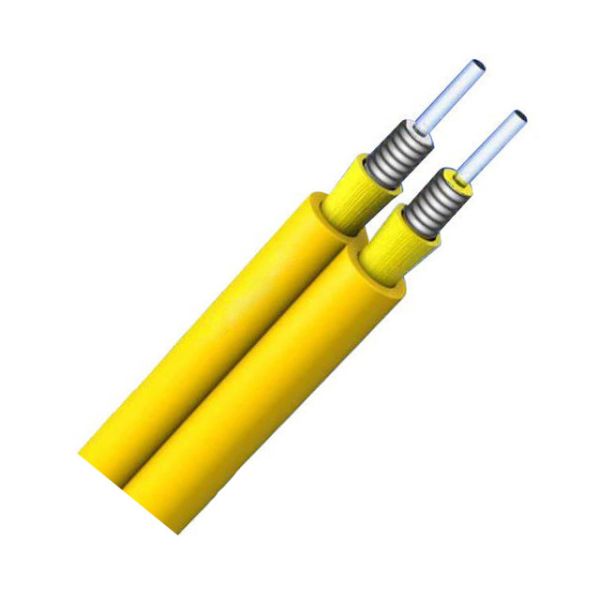

Blue or Yellow
Description

Armored fiber optic cable single mode, 2 core duplex zipcord blue fiber optic cable, with a stainless steel tube,LSZH indoor/outdoor use

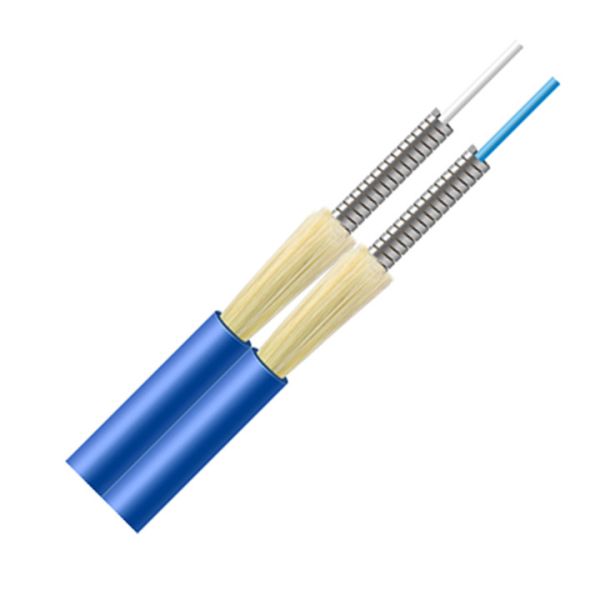

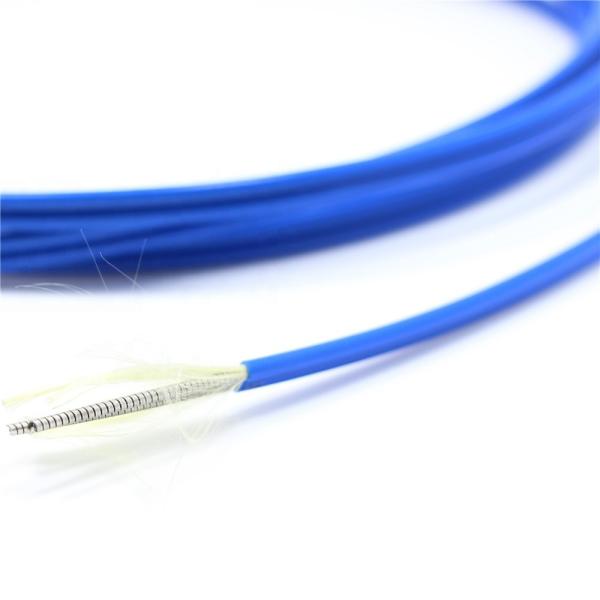

Zipcord Interconnect cable use ∅900µm or ∅600µm flame-retardant tight buffer fibers as optical communication medium, the tight buffer fiber is protected by a spiral steel tube, then wrapped with a layer of aramid yarn as strength units, the cable is completed with a PVC or LSZH (low smoke, zero halogen, flame-retardant) jacket.

Features:
Figure 8 structure jacket facilitate embranchment;

Tight buffer fiber ease of stripping;
Aramid yarn as strength member make cable have excellent tensile strengh;

Tight buffer fiber have excellent flame-retardant performance;
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc;
All dielectric structure protect it from electromagnetic influence;
Scientific design with serious processing art.


Applications:
Duplex optical fiber jumper or pigtail;
Indoor riser level and plenum level cable distribution;
Interconnect between instruments, communication equipments;

Parameters:·

Fiber Count TBF Diameter (µm) Cable Diameter (mm) Cable Weight (kg/km) Bending Radius (mm) Tensile Strength (N) Cruch Resistance (N/100mm)
PVC Jacket LSZH Jacket Static Dynamic Long term Short term Long term Short term
2 900±50 (6.0±0.4)x(2.8±0.2) 24 30 30D 50D 100 200 100 500

Fiber characteristic

Fiber style Unit SM
G652		 SM
G652D		 MM
50/125		 MM
62.5/125		 MM
OM3-300
condition nm 1310/1550 1310/1550 850/1300 850/1300 850/1300
attenuation dB/km ≤ ≤ ≤ ≤3.0/1.0 ≤3.0/1.0
0.36/0.23 0.34/0.22 3.0/1.0 ---- ----
Dispresion 1550nm Ps/(nm*km) ---- ≤18 ---- ---- Dispresion
1625nm Ps/(nm*km) ---- ≤22 ---- ---- 　
Bandwith 850nm MHZ.KM ---- ---- ≧400 ≧160 Bandwith
1300nm MHZ.KM ---- ---- ≧800 ≧500 　
Zero dispersion wavelength nm 1300-1324 ≧1302,
≤1322		 ---- ---- ≧ 1295,
≤1320
Zero dispresion slope nm ≤0.092 ≤0.091 ---- ---- ----
PMD Maximum Individual Fibr 　 ≤0.2 ≤0.2 ---- ---- ≤0.11
PMD Design Link Value Ps(nm2*k
m)		 ≤0.12 ≤0.08 ---- ---- ----
Fibre cutoff wavelength λc nm ≧ 1180,
≤1330		 ≧1180,
≤1330		 ---- ---- ----
Cable sutoff
wavelength λcc		 nm ≤1260 ≤1260 ---- ---- ----
MFD 1310nm um 9.2+/-0.4 9.2+/-0.4 ---- ---- ----
1550nm um 10.4+/-0.8 10.4+/-0.8 ---- ---- ----
Numerical
Aperture(NA)		 　 ---- ---- 0.200+/
-0.015		 0.275+/-0.
015		 0.200+/-0
.015
Step(mean of bidirectional
measurement)		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Irregularities over fiber
length and point		 dB ≤0.05 ≤0.05 ≤0.10 ≤0.10 ≤0.10
Dicontinuity
Difference backscatter
coefficient		 dB/km ≤0.05 ≤0.03 ≤0.08 ≤0.10 ≤0.08
Attenuation uniformity dB/km ≤0.01 ≤0.01 　 　 　
Core dimater um 　 　 50+/-1.0 62.5+/-2.5 50+/-1.0
Cladding diameter um 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1 125.0+/-0.1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242+/-7 242+/-7 242+/-7 242+/-7 242+/-7
Coating/chaffinch
concentrically error		 um ≤12.0 ≤12.0 ≤12.0 ≤12.0 ≤12.0
Coating non circularity % ≤6.0 ≤6.0 ≤6.0 ≤6.0 ≤6.0
Core/cladding conentricity error um ≤0.6 ≤0.6 ≤1.5 ≤1.5 ≤1.5
Curl(radius) um ≤4 ≤4 ---- ---- ----

Package

1.Packing material: Wooden drum
2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
if required by customer
