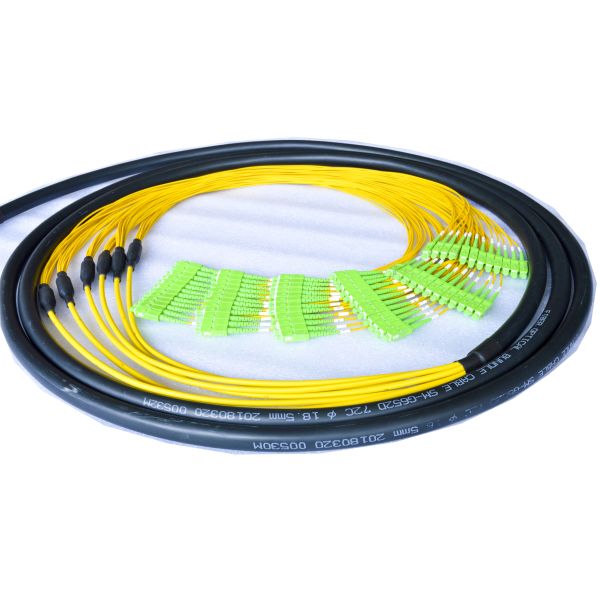

SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
UNFP72
Certification :
ROHS
Place of Origin :
China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Individual package
Connector type :
LC/SC/ST/FC
Jacket material :
PVC/LSZH/OFNP
Fiber count :
4/6/8/12/24/48/72/144fibers
Breakout diameter :
0.9/2.0/3.0mm
Trunk OD :
7.0-8.0mm/4.6-5.0mm
Fan-out length :
0.3/0.5m or Customized
Cable length :
Customized
Fiber type :
G.652.D G657A
Description

Pre terminated fibre cable, LC/SC/FC/ST 72 Fibers Indoor/Outdoor OS2 Single Mode Assembly, 2.0mm Breakout Cable

Pre-terminated indoor/outdoor fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities, It with Strong Protective Pulling Tube

Features

1,Quick & easy installation without special skills, reducing installation time.

2,Protect the connectors and prevent the cable from twisting during the pull.

3· Small volume, high fiber density

4. High back reflection loss value

5. Stable capability and high reliability

6. Excellent mechanical capability

7· 4-144core available

8· 0.9, 2.0, 3.0 fanout available

Applications

1· Connection of trunk line

2· Switching between trunk line and distribution line

3. Local area networks

4. High integrated equiement and devices

5· Wide area networks

6· High density cable wiring system

Parameters

Item

SingleMode

MultiMode

Insertion loss

≤0.2dB

≤0.3dB

Return loss

PC≥50dB, APC≥55dB, UPC≥60dB

Insert-pull test

1000 times

Repeatability

≤0.1

Tensile strength

≥10kg

Operating temperature

-40℃~ +85℃

Ceramic ferrule spec

125.5um concentricity deviations:≤1μm

127um concentricity deviations:≤3μm

Suitable fiber

9/125μm

50/125μm, 62.5/125μm



SC/FC/ST/LC 72 Pre Terminated Multi Fiber Cables OS2 Single Mode Assembly
