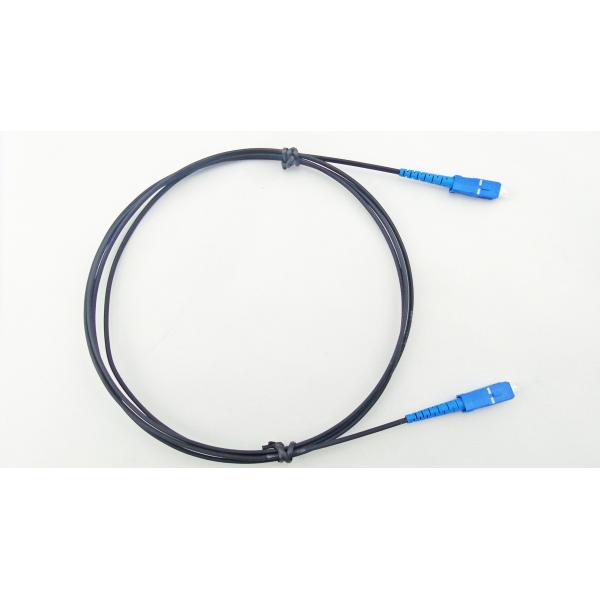

Indoor 1 Core Drop Wire Patch Cable SC/APC SC/UPC G657A LSZH Jacket 2.0mm Dia
Indoor 1 Core Drop Wire Patch Cable SC/APC SC/UPC G657A LSZH Jacket 2.0mm Dia
Indoor 1 Core Drop Wire Patch Cable SC/APC SC/UPC G657A LSZH Jacket 2.0mm Dia
Indoor 1 Core Drop Wire Patch Cable SC/APC SC/UPC G657A LSZH Jacket 2.0mm Dia
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
UNFDSC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Individual package
Connector type :
FC/SC/LC/ST
Cable color :
White or Black
Cable jacket :
PVC/LSZH
Cable diameter :
2.0mm
Strength Member Material :
FRP
Fiber Count :
1 fiber 2 fiber 4 fiber
Fiber type :
G652D or G657A
Description

FTTH drop cable patch cord, SC/APC to SC/UPC, Indoor 1 core drop wire G657A, LSZH

Description

With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.

FEATURES

Low insertion loss, high return loss

Fiber Mode: G652D, G.657A1, G657A2, G657B3

Connector Types: LC, FC, SC,ST for option

Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm

Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC

Compliant to IEC standard

APPLICATION

Local Area Network and Building Cabling Network

FTTH network for indoor and outdoor

terminal box and communication

Interconnect between instruments,

Technical Parameter

Connector SC
UPC
Cable Diameter (mm) Indoor FTTH Drop Cable
2.0x3.0
Insertion Loss(dB) ≤0.2
Return Loss (dB) ≥50
Cable Diameter (mm) 2.0mm, 3.0mm
Durability(dB) 1000matings, <0.3
Interchangeability (dB) <0.2
Operating temperature (℃) -40~+85

Indoor 1 Core Drop Wire Patch Cable SC/APC SC/UPC G657A LSZH Jacket 2.0mm Dia
