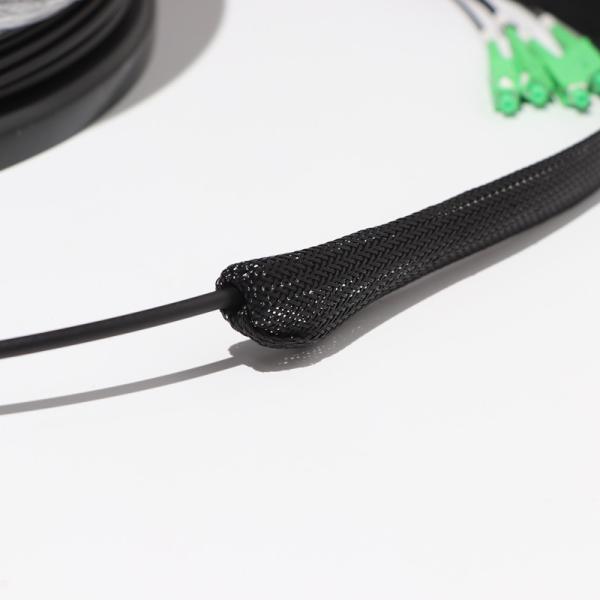

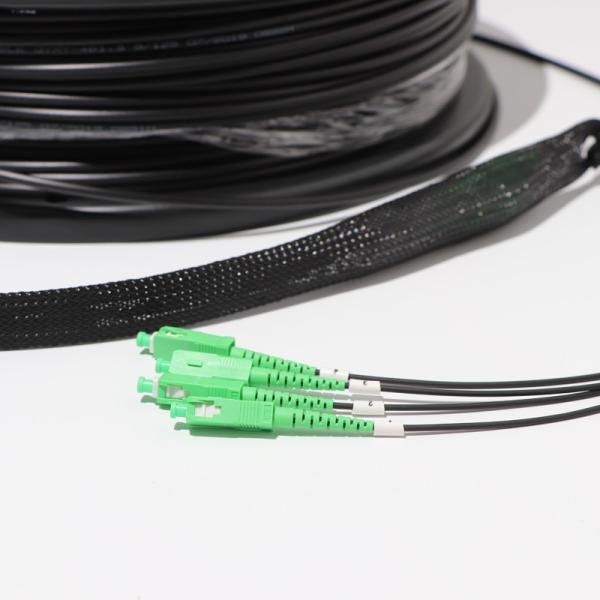

Custom Assemblies Pre Terminated Multi Fiber Cables SC APC Cord With Pulling Sock 4F
Custom Assemblies Pre Terminated Multi Fiber Cables SC APC Cord With Pulling Sock 4F
Custom Assemblies Pre Terminated Multi Fiber Cables SC APC Cord With Pulling Sock 4F
Custom Assemblies Pre Terminated Multi Fiber Cables SC APC Cord With Pulling Sock 4F
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
SCA
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
Individual package
Cable counts :
4core
Cable Jacket :
LSZH,TPU,PE
Cable Diameter :
4.8mm or 7mm
Cable Mode :
GJFJH
Cable Length :
1/3/5/10m or Customized
Application :
CATV/base station/GSM/FTTA
Fiber :
G657A
Cable type :
Armored or Non-armored
Description

Pre terminated fibre cable single mode SC APC fiber patch cord with Pulling Sock 4core custom fiber optic cable assemblies

UNIFIBER providing high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout number ranging from 12 to 144. Available connector types include MPO, SC, LC, FC, LSH, and MU, available fanout kits include steel-tube type, round type, box type, barrel type, etc., and available fanout types include bare fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc. The fanout length can be up to 10 meters, and the fanout tolerance can be as small as 0.5cm.

indoor/outdoor non-armored Pre-Terminated Fiber Optic Cable Assemblies are great choices for multiple applications inside or outside. For those jobs outside, consider our outdoor non-armored Pre-Terminated Fiber Optic Cable Assemblies for aerial or burial in duct applications. If you’re facing the most extreme conditions, check out our outdoor armored direct burial/aerial and ADSS self-supporting aerial Pre-Terminated Fiber Optic Cable Assemblies. They will provide outstanding service and durability in all kinds of conditions.
All of our pre-terminated cable products are tailor-made to customers’ specific requirements. We can fulfill any kinds of customers’ demands on products’ specs including connector type, fanout type, fanout length/tolerance, cable structure, etc., for a wide range of applications including FTTC, FTTB, FTTH, FTTA, data center, industrial, robotic, health-care fields, etc.

Applications:
Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fibre-To-The-Home (FTTH)
Premises distribution

Features
Easily add/install jumper cables for a future expansion Factory-assembled cables for a fast on-site installation

Jacket material: LSZH, OFNR, OFNP available

Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time

IP67 water and dust protection Flexibility with small bending radius and excellent cable routing properties

PARAMETERS

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to + 85℃

Custom Assemblies Pre Terminated Multi Fiber Cables SC APC Cord With Pulling Sock 4FCustom Assemblies Pre Terminated Multi Fiber Cables SC APC Cord With Pulling Sock 4F
