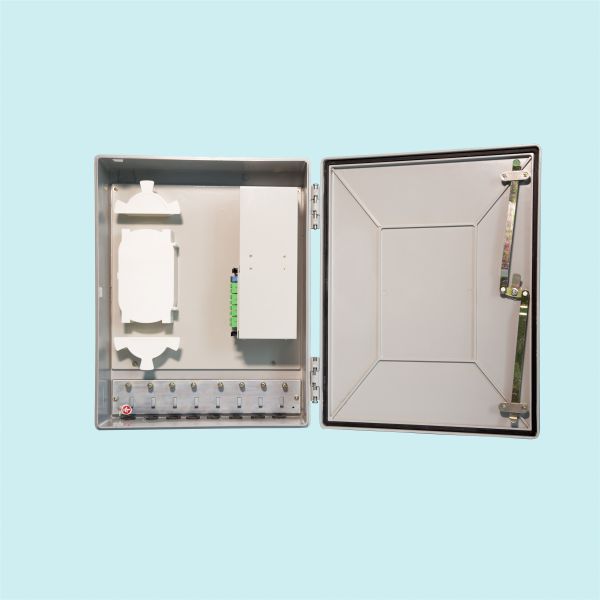

Outdoor Fiber Patch Panel Wall Mount Cold Roll Steel 12 24 48 96 Port With SC LC Adapter
Outdoor Fiber Patch Panel Wall Mount Cold Roll Steel 12 24 48 96 Port With SC LC Adapter
Outdoor Fiber Patch Panel Wall Mount Cold Roll Steel 12 24 48 96 Port With SC LC Adapter
Outdoor Fiber Patch Panel Wall Mount Cold Roll Steel 12 24 48 96 Port With SC LC Adapter
Outdoor Fiber Patch Panel Wall Mount Cold Roll Steel 12 24 48 96 Port With SC LC Adapter
Outdoor Fiber Patch Panel Wall Mount Cold Roll Steel 12 24 48 96 Port With SC LC Adapter
Specifications
Brand Name :
UNIFIBER
Model Number :
GP05
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5-7 days
Packaging Details :
carton box
Application :
Outdoor wall mounted
Adapter port :
SC/FC/LC
Max. capacity :
12/24/48/72/96
Material :
cold roll steel
Max. capacity of splice tray :
12fiber
Package :
Carton box
Description

Outdoor fiber optic patch panel for fiber optic cables,wall mount 12 24 48 72 96 port fiber patch panel SC LC

FTTH Distribution Frame Wall Mount Fiber Optic Patch Panel can manage both single fiber, ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.

Features

Suitable for single fiber and ribbon & bundle fiber cables

Various panel plate to fit different adapter interface of FC, SC, ST, LC

With cold-roll steel box, splicing unit, distribution unit and panel
Unique structure, reasonable layout, and has adequate room for operation

Specification
Working temperature:-25℃ ~ +40℃
Storage temperature:-25℃ ~ +55℃
Relative humidity:≤85% (+30℃)
Atmospheric pressure:70 ~ 106 kpa

Type Size(mm) H*W*D Max capacity Outer carton dimension Outer cartion weight
GP(05)A-24 455*405*80 24 500*450*490/4pcs 29.5
GP(05)A-48 455*405*120 48 500*450*490/3pcs 25.3
GP(05)A-72 455*405*150 72 500*450*390/2pcs 19.5
GP(05)B-48 455*405*120 48 500*450*490/3pcs 27
GP(05)B-72 455*405*150 72 500*450*390/2pcs 20.5
GP(05)A-24A 350*350*80 24 405*405*605/5pcs 20.8
GP(05)B-24B 455*405*80 24 500*450*490/4pcs 29
GP(05)C 350*300*80 12 405*355*605/5pcs 19.5
GP(05)D 350*300*80 24 405*355*605/5pcs 19.5
