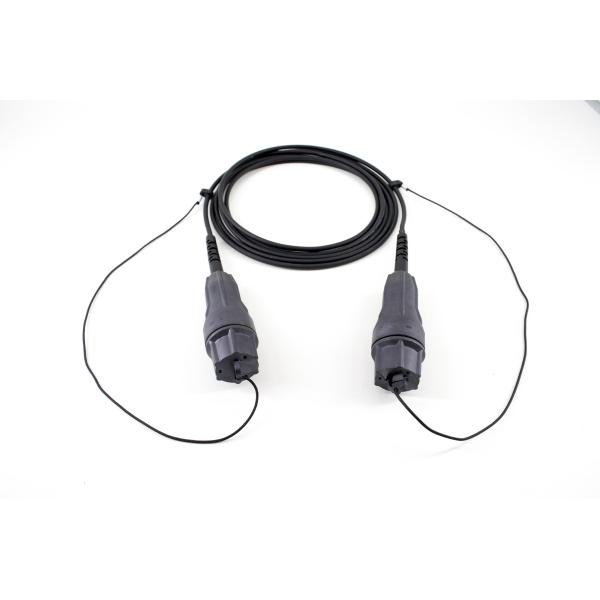

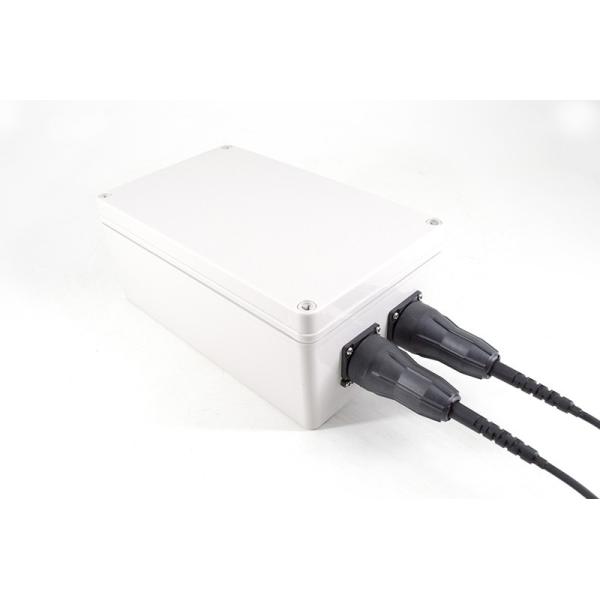

Fiber optic breakout harnesses cable assembly FullAXS to LC 2/4/6/8 count, IP67 waterproof outdoor fiber optic assembly​

To meet the needs of the next generation WiMax and long term evolution(LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the FullAXS connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.
FullAXS-FTTA- strong, connector Use the cable assembly firmly establish themselves through the bulk headis directly inserted into the optical fiber transceiver is directly connected to the WiMax and LTE in FTTA application. Connectors of the connection request, can accommodate a larger tolerance in Z direction. In the FullAXS connector system by allowing large Z direction of tolerance, but also provides a single hand installed in compliance with this requirement in the connector housing benefits.
With this new line of products, users can also easily removed, and through the open the entire remote radio box in do not need completely, its contents exposed in poor weather conditions bulkhead hole replace transponder.
For optical fiber connection, duplex LC interface of the connector system includes an industry standard for quick, paired with all LC duplex SFP transceiver. The FullAXS connector can be designed for either the application single mode or multimode optical fiber transmission.
Aim to provide a general platform, new products to expand the capabilities of the RJ45 and the power supply connector, and version splicing in the field installation, to adapt to any cable. Other functions of the product / system benefits include:
- is a mechanical feedback to inform the operator when the connector completely docking
During or after installation, no cable buckling
- powerful bayonet locking, convenient, fast, secure mating
- a waterproof, dustproof, corrosion resistant design, using metal die-casting bulkhead
- cost savings by eliminating the fiber in the management of the radio unit
The antenna feeder is connected to the specifications of the optical fiber.

Feature:
Open bulkhead for easy access to SFP
Positive feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and singlemode
Water proof, dust proof and corrosion resistant
Expansion to RJ45, etc
Plug has tolerance free design, fully free floating in Z-axis
No Cable buckling at any time during or after installation
Cost effective glass-filled polymer or metal die casted bulkhead
Field installable version available

Specifications
