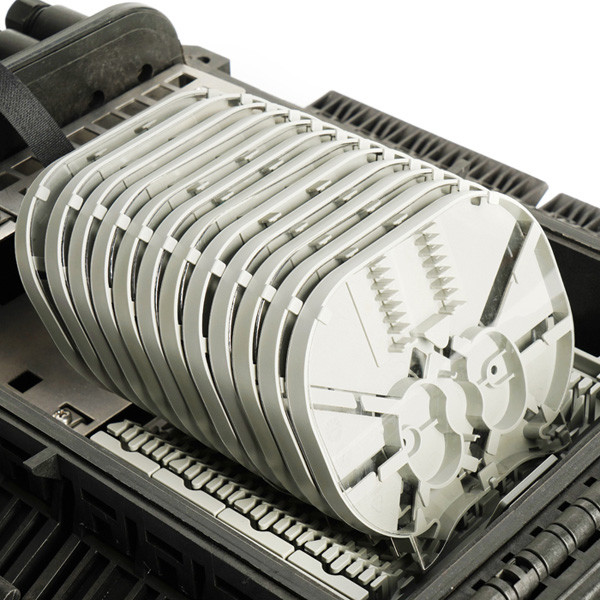

IP68 144 Core Fiber Optic Connection Box 12*12 Fiber Splicing Tray With Micro Type Splitters
IP68 144 Core Fiber Optic Connection Box 12*12 Fiber Splicing Tray With Micro Type Splitters
Specifications
Brand Name :
UNIFIBER
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
carton box
Type :
Inline Type(Horizontal Type)
Dimension :
370×210×124
Weight :
2.5-3.0kg
Max Capacity(Cores) :
96cores
q'ty of splice tary :
4x24F
Installation method :
Wall-mounting/ aerial
waterproof grade :
IP 68
Sealling :
Mechanical seal
Description

Fiber optic connection box IP68,144core,12*12fiber splicing tray,can be installed with micro type splitters

Features

1 Port for uncut cable Ф10~l 7.5mm. 2 branch ports for Ф6～8mm,Ф10～17.5mm cable. 6 ports for outlet cables(Ф6-8 round cable).

Capacity: l 2F per tray,could be installed with 12 trays, max capacity l 44F.

Protection grade: IP68. Mer.hanicel seal.Installation methnd: Wall-mounting,Pole-mnunting.

Could be installed with micro type splitters.

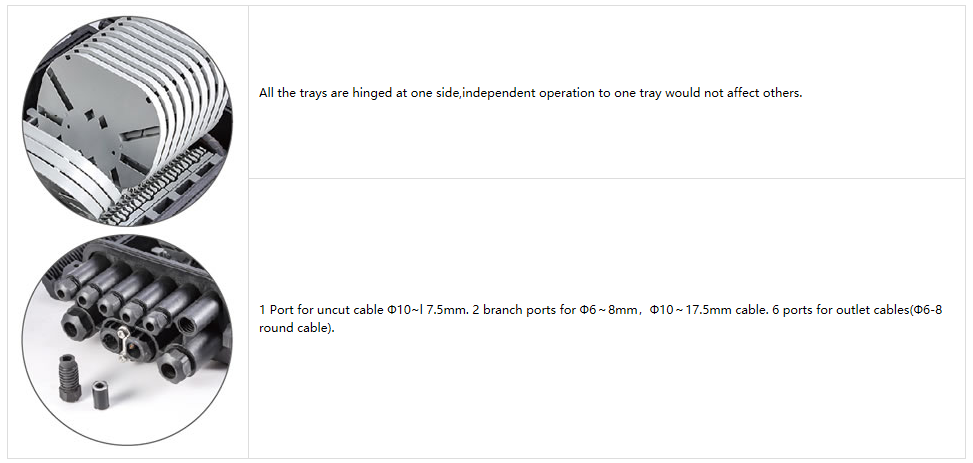

Designed to be flipped over without screw. Compact size brings easy operation and ccmplete function.

All the splice trays are hinged together at one side. which eases the operatio

n of each tray. Optic fiber will not be damaged because of the mess of transitional tube. Also cables in one tray can be spliced in other trays.

IP68 144 Core Fiber Optic Connection Box 12*12 Fiber Splicing Tray With Micro Type Splitters

Type Size Weight Inner carton size Outer carton size
GPJ09-8202 380×245×130mm 3.0-4.0kg 395×255×165mm(1 pcs) 540×410×350mm(4 pcs)

IP68 144 Core Fiber Optic Connection Box 12*12 Fiber Splicing Tray With Micro Type Splitters
