Wall Mount Fiber Optic Patch Panel SC Indoor / Outdoor Cold Rolled Steel Durable
Wall Mount Fiber Optic Patch Panel SC Indoor / Outdoor Cold Rolled Steel Durable
Specifications
Brand Name :
UNIFIBER
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5-7 days
Packaging Details :
carton box
Application :
indoor wall mounted
Adapter port :
SC/FC/LC
Max. capacity :
12/24/48/72
Material :
cold roll steel
Max. capacity of splice tray :
12fiber
Max Q'ty of splice tray :
4
Description

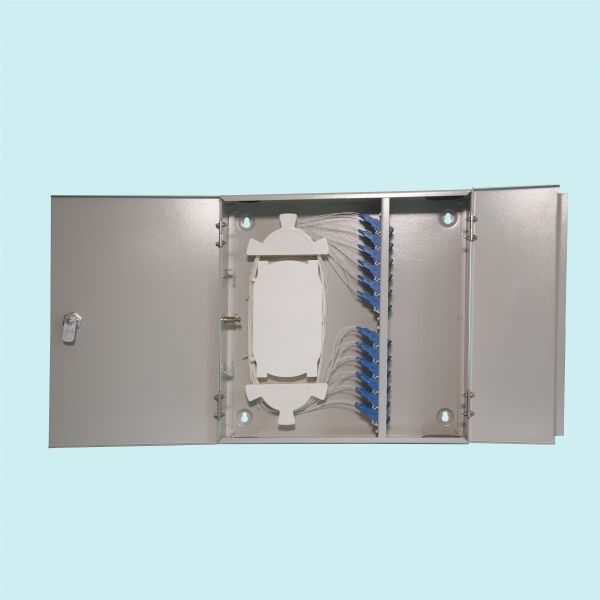

Wall mount fiber optic patch panel SC, indoor/outdoor Cold-rolled steel fiber optic patch box

Double Door Optical FTTH Distribution Frame Wall Mount Fiber Optic Patch Panel can manage both single fiber, ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.

Features

With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation

Specification
Working temperature:-25℃ ~ +40℃
Storage temperature:-25℃ ~ +55℃
Relative humidity:≤85% (+30℃)
Atmospheric pressure:70 ~ 106 kpa

Type Size(mm) H*W*D Max capacity Outer carton dimension Outer cartion weight
GP(05)A-24 455*405*80 24 500*450*490/4pcs 29.5
GP(05)A-48 455*405*120 48 500*450*490/3pcs 25.3
GP(05)A-72 455*405*150 72 500*450*390/2pcs 19.5
GP(05)B-48 455*405*120 48 500*450*490/3pcs 27
GP(05)B-72 455*405*150 72 500*450*390/2pcs 20.5
GP(05)A-24A 350*350*80 24 405*405*605/5pcs 20.8
GP(05)B-24B 455*405*80 24 500*450*490/4pcs 29
GP(05)C 350*300*80 12 405*355*605/5pcs 19.5
GP(05)D 350*300*80 24 405*355*605/5pcs 19.5

Wall Mount Fiber Optic Patch Panel SC Indoor / Outdoor Cold Rolled Steel Durable
