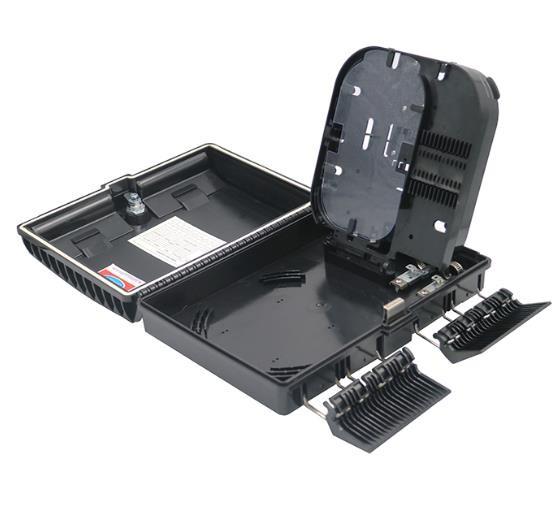

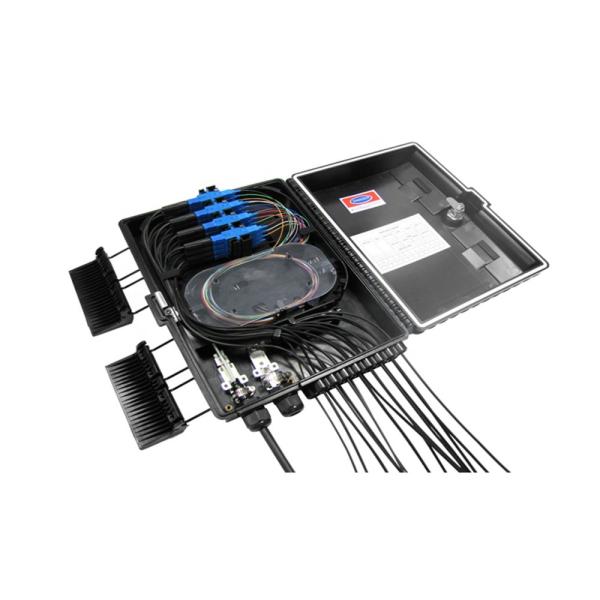

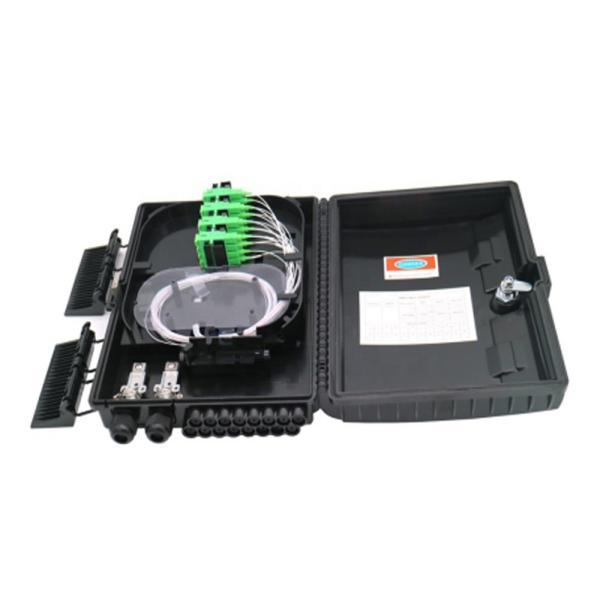

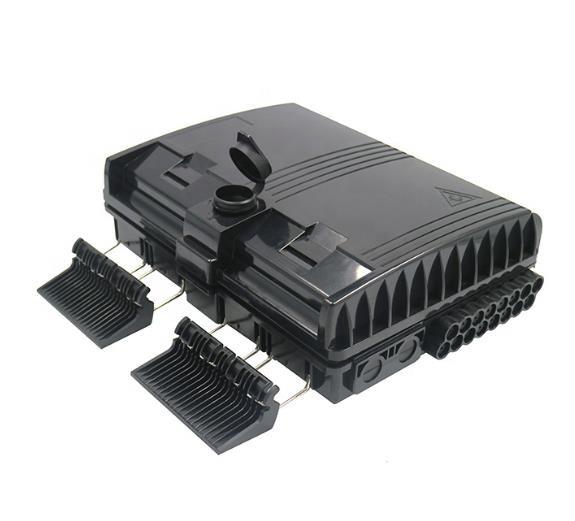

ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
ABS Plastic FTTH Fiber Optic Termination Box 16 Core Wall / Pole Installation
Specifications
Brand Name :
UNIFIBER
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
L/C, T/T
Delivery Time :
3~5 business days
Material :
ABS Plastic
Capacity :
16core
Color :
Black or White
Application :
Outdoor wall mounted or pole mounted
Structure :
Total enclosed structure
Description

FTTH Fiber Optic terminal box,16 core fiber optic cable box wall/pole installation,terminate feeder cable and drop cable

fiber optic access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.

1. Total enclosed structure.
2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
4. Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6.Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses

 Material

 Size

 Max Capacity

 Installation Size

 Weight

 Color

 PC+ABS

 AxBxC(mm)

 SC

 Modular PLC

 DxE(mm)

 1.5kg

 Black

 305x237x105

 16 Ports

 1x16(SC)

 206x274
