Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Pulling cable reel duct rodder
Certification :
ROHS ISO
Place of Origin :
CHINA
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000pcs/day
Delivery Time :
5-8days
Packaging Details :
Wooden pallet and Wooden box
Color :
Yellow,black,red,green,white etc
Duct Rodder Length :
10-500m
Rod diameter :
4-18mm
Items :
Cable laying tools
Application :
Pipe, Conduit Cable Laying
Package :
Wooden pallet and Wooden box
Description

Cheap price FRP duct rodder duct rodding fiberglass snake rod,Galvanized electrical cable reel stands

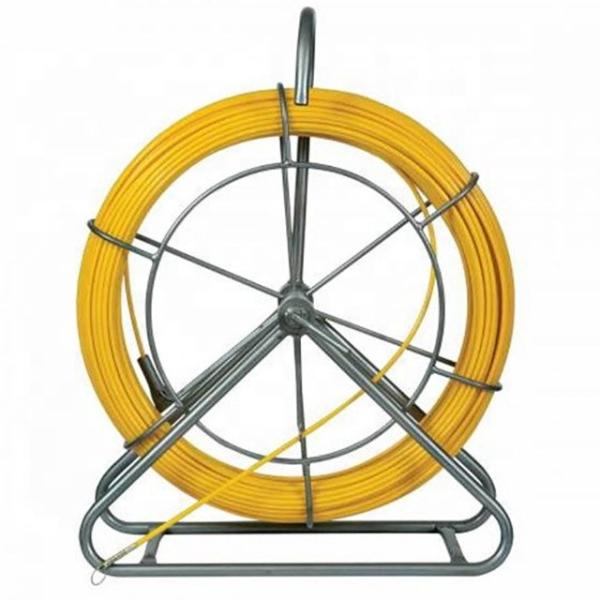

Duct rodder, also called fiberglass duct rodder, is composed of three parts: internal copper/steel wire, fiberglass rod, and outer polyethylene coating. Each duct rodder comes with a sturdy steel frame with different sizes according to the diameter and length of the rod. Some frames are equipped with wheels, also called wheeled duct rodder, which makes it convenient to move at the job site. FRP duct rodder is an ideal tool for underground jobs such as pulling cables and lines through conduits, tubes, pipes or ducts. For its high tensile strength, wear-resistant surface and elastic body, it is widely used in the fields of telecommunication, electric power, water conservancy, etc.

Application

Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations
Inside and outside conduit drops
Used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put

Features:

Solid fiberglass, non-conductive
The external rod is protected from abrasion by a polymer coating.
Feed device allows rod to feed out or be back with easy push or pull of rod
Anticorrosion,good elasticity,long working life

lexible rod: Optimal for cable/wire installation in conduits and underground ducting
Rod housed in a study metal frame with an integral brake. Simply rotate the wheel to guide the rod down the duct.
Permanently etched meters incremental markings allow for easy measuring

Products Details

Guide rollers
Parking brake
Copper head

Metal frame
Rubber wheels

Specification

Fiberglass snake rod,Fish tape,Cable jockey/Galvanized electrical cable reel stands/Fiberglass Push Pull Rod

Name Duct rodder
Other name Snake rod,push pull rod
Glass fiber rod diameter φ4.mm--φ18mm,
Length 30m--,500m
Min Bend Radius 250mm,330mm
Glass fiber density 210kg/m, 245kg/m
Breaking tension 2400kg, 4200kg

Working

temperature

 -40°C--80°C
Frame size

1300mm x 450mm x 1330mm

1200mm x 420mm x 1220mm

980mm x 350mm x 1000mm

680mm x 240mm x 700mm

4200mm x 1800mm x 400mm

Galvanized Electrical Cable Reel Stands FRP Duct Rodder Duct Rodding Fiberglass Snake RodGalvanized Electrical Cable Reel Stands FRP Duct Rodder Duct Rodding Fiberglass Snake RodGalvanized Electrical Cable Reel Stands FRP Duct Rodder Duct Rodding Fiberglass Snake RodGalvanized Electrical Cable Reel Stands FRP Duct Rodder Duct Rodding Fiberglass Snake Rod
