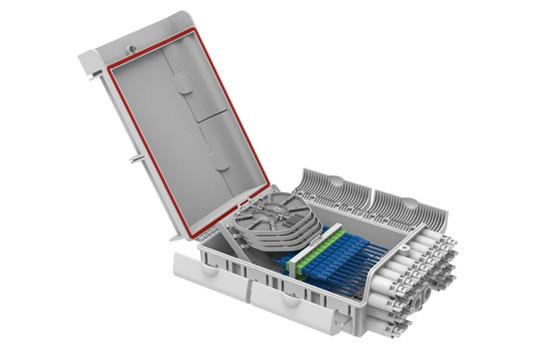

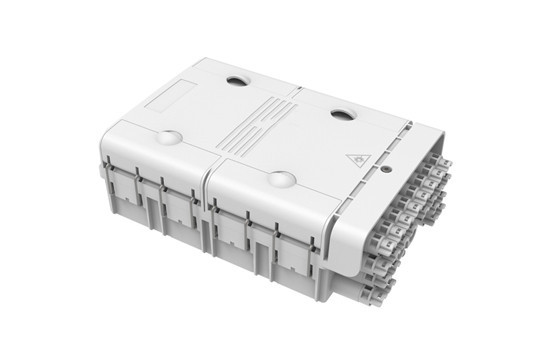

24 Ports Fiber Optic Junction Box 48 Fibers Outdoor Wall / Pole Mounted Waterproof
24 Ports Fiber Optic Junction Box 48 Fibers Outdoor Wall / Pole Mounted Waterproof
Specifications
Brand Name :
UNIFIBER
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Payment Terms :
L/C, T/T
Delivery Time :
3~5 business days
Material :
ABS Plastic
Max Capacity :
48F
Adapter Port :
SC simplex
Color :
Black or White
Application :
Outdoor wall mounted or pole mounted
Description

1. Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.It is suitable for optical fiber splicing, distribution and protection. It is reasonable design for fiber arrangement, and for outdoor wall mounted and pole mounted application.



2. Features

1, Total enclosed structure.

2, Material: PC,wet-proof. water-proof. dust-proof. anti-aging, protection level up to IP68.

3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4, Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

5, Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



3. Specification

1) Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure: 70KPa~106Kpa

2) Main technical data-sheet

Insertion loss: ≤0.2dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

Life of insertion and extraction: >1000 times





4. Configuration Table:

Table 1- Model and Configuration

Model Description Size(Pic 1) Max Capacity Installation Size(Pic 2) Cable entry
A*B*C(mm) SC D*E*F (mm)
24 Core Splitter Box 388*242*128 24 135*135*190 Express port
16 Core Splitter Box 388*242*128 16 135*135*190 Express port

24 Ports Fiber Optic Junction Box 48 Fibers Outdoor Wall / Pole Mounted Waterproof
