IP67 Outdoor Rugged Cable Assembly Harsh Environment Connectors Fullaxs Sealing
IP67 Outdoor Rugged Cable Assembly Harsh Environment Connectors Fullaxs Sealing
Specifications
Brand Name :
UNIFIBER-OEM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Cable diameter :
4.8/7.0mm
Cable jacket :
LSZH,PE,TPU,UV resistance
Cable length :
1/3/5/10m Or Customized
Description

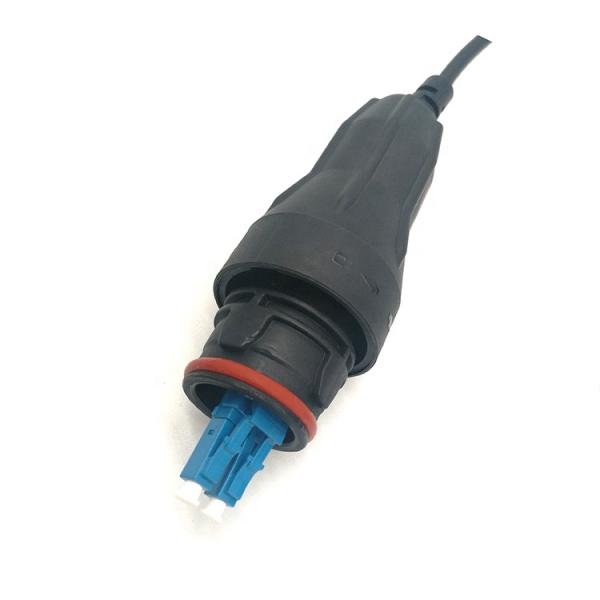

Fullaxs sealing connector & rugged cable assembly,Harsh environment connectors

FullAXS is a IP67 rated outdoor connector to have protection LC duplex, MPO/MTP, SC connectors from dust and water for remote radio units and FTTA connectivity. The design of the housing and boot eases installation constraints and can be easily accessed to SFP. all the connectors are factory terminated and tested

Features:

–IP67 rated for water and dust protection, corrosion resistance

–LC duplex, MPO/MTP, SC and others can be accommodated

–Factory terminated , no tools required

–Designed for harsh environment application

–Customized cable length, and fiber type

–UPC or APC endface polish, singlemode or multimode for option

–Robust bayonet lock system for easy, fast, secure mating

–Open bulkhead for easy access to SFP

Application

–Remote Radio Head(RRH)

–Aerospace and Defense

–Outdoor Telecommunication

–LTE base station

PARAMETERS

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles

Working temperature

 -40 to + 85℃
