Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
Specifications
Brand Name :
UNIFIBER-OEM
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Packaging Details :
Individual package
Cable counts :
2 counts or 4 counts
Cable Jacket :
LSZH,TPU,PE
Cable Diameter :
4.5mm or 7mm
Cable Mode :
GJFJH
Cable Length :
1/3/5/10m or Customized
Application :
CATV/base station/GSM/FTTA
Fiber :
G657A
Description

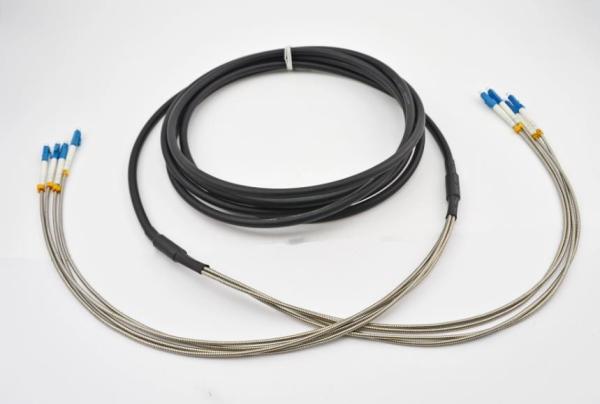

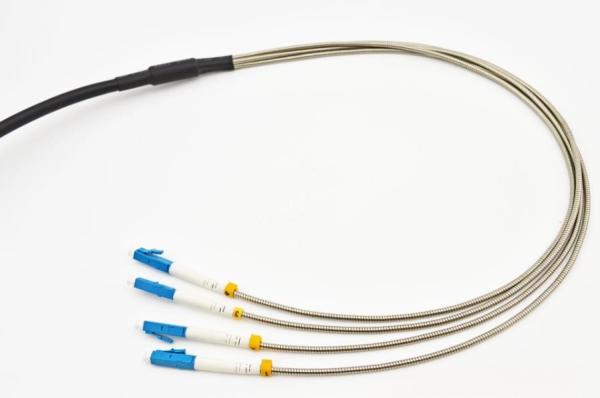

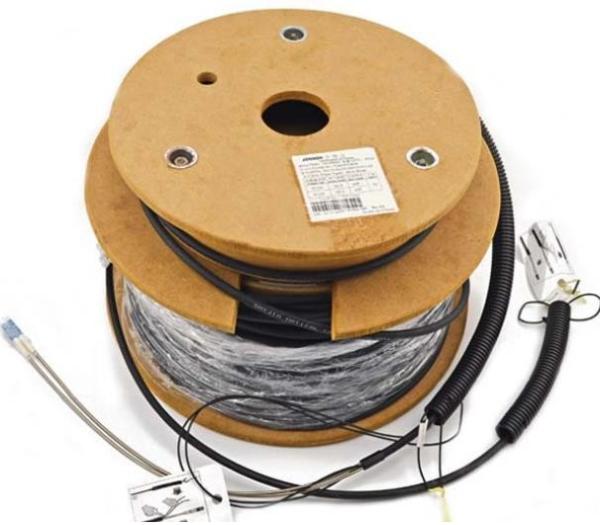

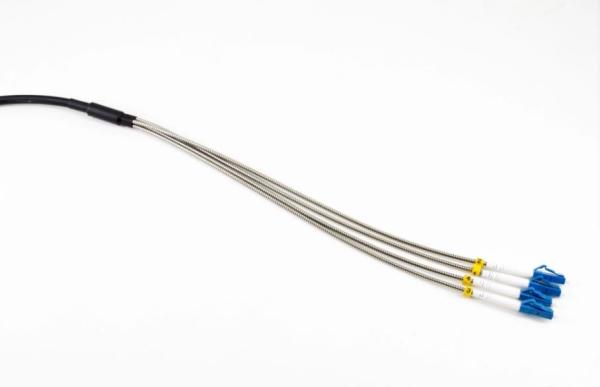

Base Station BBU/RRU CPRI Armored Patch Cord Cable Assemblies,GYFJH 2A1a (LSZH) 7.0mm duplex LC/LC,with pulling eyes

FEATURES

Easily add/install jumper cables for a future expansion

Factory-assembled cables for a fast on-site installation

IP67 water and dust protection

Flexibility with small bending radius and excellent cable routing properties

Equipped with customer specific power and fiber-optic connectors

APPLICATION

Multi-purpose Outdoor

For connection between distribution box and RRH

Deployment in Remote Radio Head cell tower applications

PARAMETERS

Type SM-UPC SM-APC MM-UPC
Typical MAX Typical MAX Typical MAX
Insertion loss ≤0.1 ≤0.3dB ≤0.15 ≤0.3dB ≤0.05 ≤0.3dB
Return loss ≥50dB ≥60dB ≥30dB
Durability 500 mating cycles
Working temperature -40 to + 85℃

Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZHBase Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH

Base Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZHBase Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZHBase Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZHBase Station Fiber Cable Assembly BBU/RRU CPRI Armored Patch Cord GYFJH 2A1a LSZH
