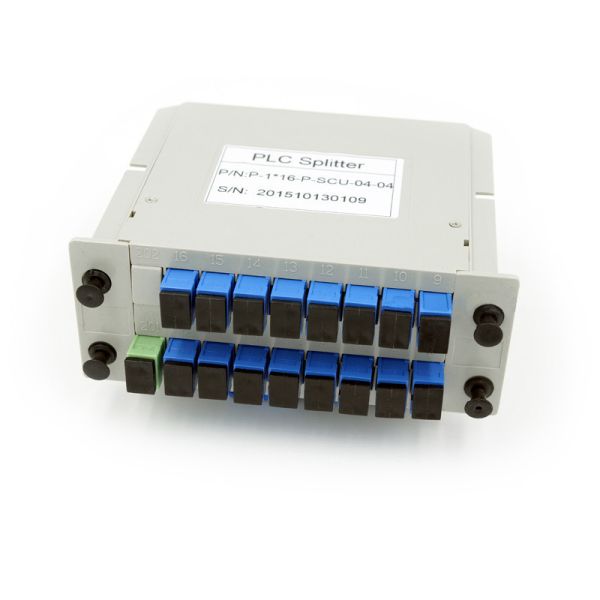

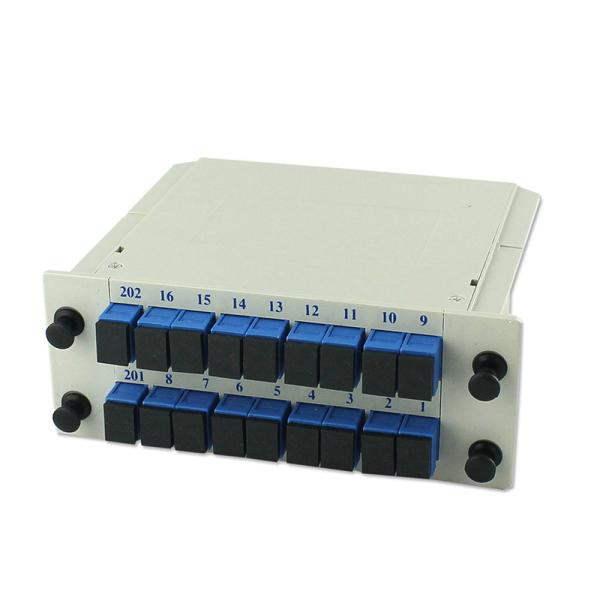

Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
Specifications
Brand Name :
UNIFIBER
Model Number :
PLC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5~8 business days
Packaging Details :
Individual blister Case or Carton Box
Package Style :
ABS box,Mini Steel Tube,LGX Cassette
Configuration Type :
1x2,1x4,1x8,1x16,1x32,1x64
Connector :
SC,LC,FC,ST or Customzied
Pigtail Length :
Customized
Description

1x16 2x16 LGX cassette card inserting PLC Splitter module, SC/UPC optical fiber splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

APPLICATION

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applications in fiber optic systems

FEATURES

Low Insertion loss and Low PDL

Uniform power splitting

High reliability

Excellent environmental stability

Compact size and various package

Specification

Parameters
Parameters 1×2 1×4 1×8 1×16 1×32 1×64 1×128
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB)(P/S Grade) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformit(dB) 0.4 0.6 0.8 1.2 1.5 2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss(dB)(P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity(dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40~85℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature(℃) -40~+85
Storage Temperature(℃) -40~+85
Device Dimension(mm) 40×4×4 40×4×4 40×4×4 50×7×4 50×7×4 60×12×4 N/A
Module Dimension(mm) 100×80×10 120×80×18 141×115×18
Mini-Module Dimension(mm) 50×7×4 60×12×4 80×20×6 100×40×6 N/A

Low PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card InsertingLow PDL Plc Splitter Module ABS Box 1x16 2x16 LGX Cassette Card Inserting
