Outdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
Outdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
Outdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
Outdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
Outdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
Outdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
Specifications
Brand Name :
Unifiber or OEM
Model Number :
Military Tactical Armored Fiber Cable Assembly 4/6/12 core
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 days
Packaging Details :
Carton box
Product :
Military Tactical Armored Fiber Cable Assembly 4/6/12 core
Fiber Counts :
4/6/12 core
Connector :
FC/ST
Cable diameter :
5.0mm
Cable Jacket :
TPU
Length :
200!500m
Description

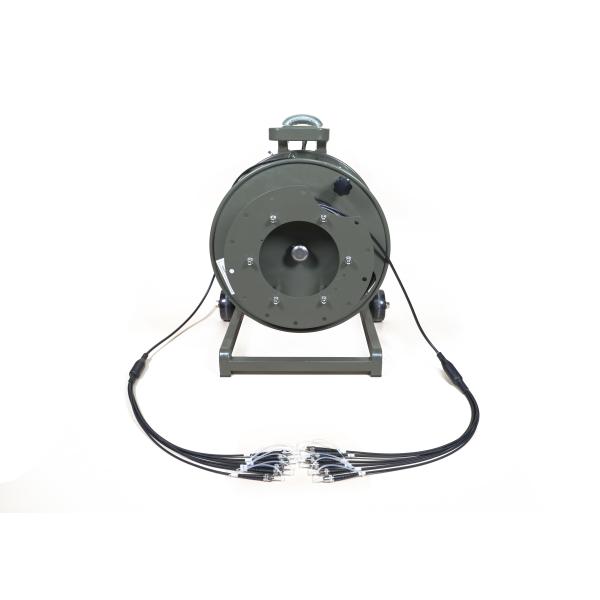

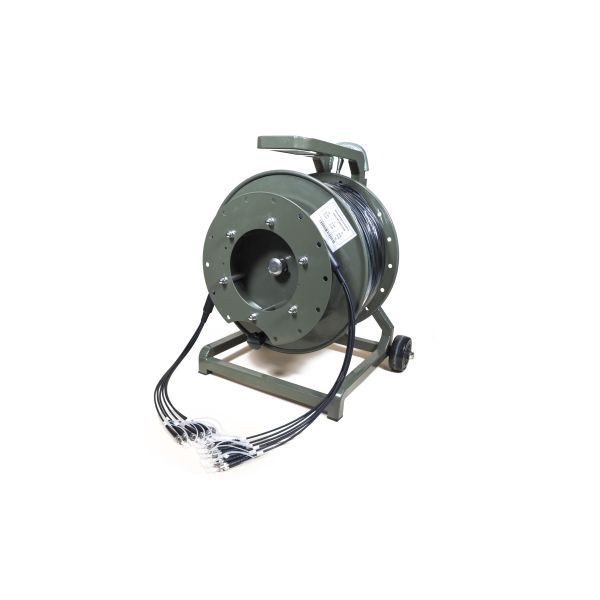

Outdoor Military Tactical Armored Fiber Cable Assembly 4/6/12 core FC/ST TPU Jacket 200~500m with Portable Cable Reel

Outdoor Military Tactical Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube which protects optical fiber and provide better security for the whole system.

Applications
1. Fiber Optic Data Transmission System
2. Military Tactcial Field,
3. Shipboard,aerospace,
4. Automotive Commercial

Features
1. Low Insertion Loss, High Reliability
2. Easy to Install with Removable Parts
3. Water/Dust Proof,Anti Corrosion
4. High Tensile Load Capability
5. Excellent Termination Strength

Specification
Single Mode
Multi Mode
Parameter
PC
UPC
APC
UPC
Operating Wavelength
1310nm, 1550nm
850nm, 1300nm
Insertion Loss
≤0.3dB
≤0.2dB
≤0.3dB
≤0.2dB
Return Loss
≥40dB
≥50dB
≥60dB
≥30dB
Fiber Type
G652D,G655, G657A1, G657A2, G657B3
OM1/OM2/OM3/OM4/OM5
Fiber Brand
YOFC, Corninng
Exchange
≤0.2dB
Repeartability
≤0.2dB
Durability
> 1000 times
Connectors Type
SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5
Fiber Count
4, 6, 8, 10, 12 Cores
Sheath Material
TPU
Cable Diameter
φ5.0±0.2mm or Specify
Length (M)
Customized
Operating Temperature
-40℃~+60℃
Storage Temperature
-45℃~+85℃
Compliant Standards
CE,RoHS, REACH and IEC

Outdoor Military Armored Patch Cord Assembly 200-500m With Portable ReelOutdoor Military Armored Patch Cord Assembly 200-500m With Portable Reel
