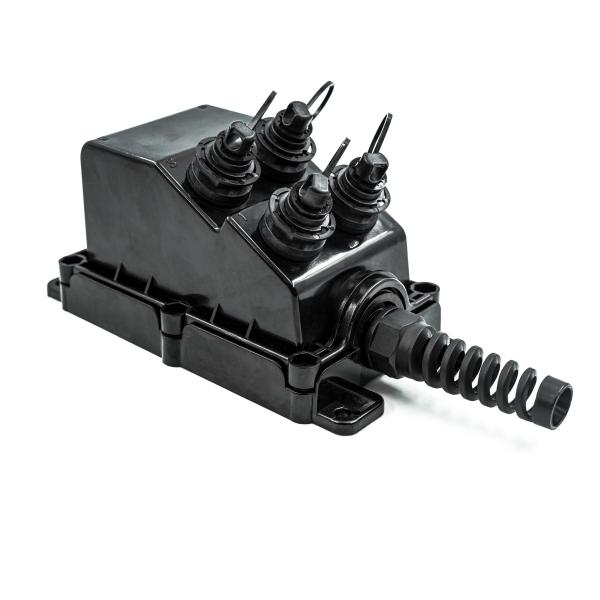

Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Mini Outdoor Waterproof Terminal Box FTTH IP67 200N/cm Huawei SC
Specifications
Brand Name :
Unifiber or OEM
Model Number :
6 ports ftth terminal box huawei mini SC
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 days
Packaging Details :
Carton box
Product :
6 ports ftth terminal box huawei mini SC
No of ports :
4/6/8/12 ports
Connector :
huawei mini SC
Waterproof Grade :
IP67
Splitters :
1x4 or 1x8
Installation :
Wall-mounting, aerial installation or holding pole installation.
Application :
FTTH
Description

FTTX Enclosure is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility.It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.

Product Features
1.Fiber optic splice box with utilize traditional field installation techniques for aerial, below ground and duct applications
2.100% optically tested to ensure quality performance assemblies at the factory
3.Available in single-mode and multimode styles to work with any common fiber type
4.Broad temperature range (-40 to+85°C) is ideal for indoor or outdoor applications
5.Drastically reduces field splicing with a predetermined loss at each waterproof tether access point
6.Provides moisture and dust protection for use in harsh industrial environments


Applications
1.Outdoor Fiber Optic Transmission
2.Optical System Access network
3.Storage area networking fiber channel
4.Data communication network, 5G tower
5.High density architectures
6.FTTA, FTTP, FTTX, WIMAX

Items Specifications
Dimensions LxWxH 365x137x90mm(Without cover) 375x142x120mm(With cover)
Ingress protection IP67
Temperature range -40 to + 80°C
Cable strength member Armoured or Non-armoured
Cable type Hybrid or non-hybrid
Round cable OD 5.0mm to 14mm
Flat cable dimension 4.6x8.9mm
Cable jacket material LSZH, PEorTPU
Bending Radius 20D
Cable crush resistance 200N/cm long term
Fire protection rating UL94-V0
Number of PLC 1 to 2pcs
Number of fusion protection sleeve 1 to 24pcs

Product tags

waterproof junction box ip68

,

ip68 waterproof junction box

,

ip65 waterproof box
