FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
Specifications
Brand Name :
Unifiber or OEM
Model Number :
Hybrid fiber optic cable
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500km/day
Delivery Time :
3~5 days
Packaging Details :
wooden drum
Product :
Photoelectric Composite Cables
Fiber Counts :
12 or 24 core
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Electric cable :
1.0 SQMM
Cable Structure: :
Uni-Loose Tube non armor
Jacket Material :
PE
Description

Description of FTTA Hybrid fiber optic cable Copper Wire Power Photoelectric Composite Cables

Hybrid Fiber Optic Cable, set fiber and power transmission and distribution cable at a suit, avoid secondary wiring, which can effectively reduce the construction, network construction and other fees. GDVV integrates optical transmission and power copper cable, hybrid fiber power cable can solve broadband access problems, equipment power supply, transmission transparent electricity meter data, report and charge electricity.

Features

Embedded strength member provide desirable tensile strength.
Compact, easy to install.
UV and moisture-resistant design

Applications

Installed in duct, direct burial.
FTTx.

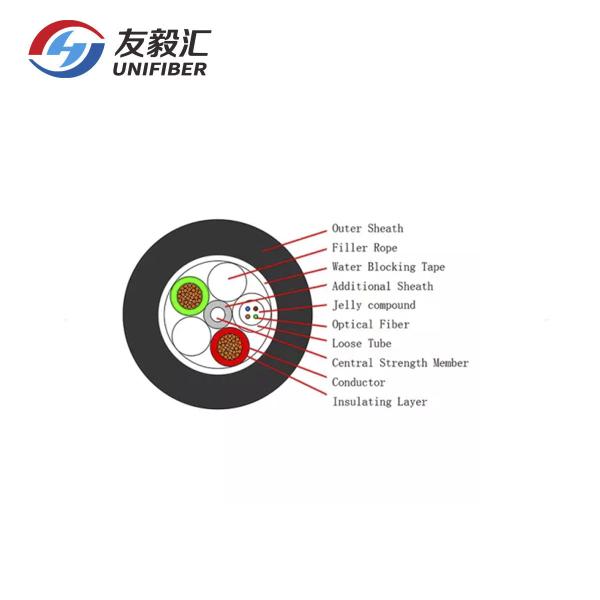

Specification

No. of cable
4
Fiber Model
G.652D
Design(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
FRP
Diameter(±0.05)mm
1.2
Loose Tube
Material
PBT
Diameter(±0.06)mm
2.3
Thickness(±0.03)mm
0.35
The Max.Core NO./Tube
4
Filler Rope
Material
LDPE
Colour
White
Diameter(±0.06)mm
2.3
NO.
2
Conductor
Material
Bare Copper
Acreage(±0.1)mm²
1.0
Single copper wire diameter
(±0.01)mm
0.20
NO.
32
Insulating Layer
Material
HDPE
Thickness(±0.05)mm
0.6
Diameter(±0.1)mm
2.5
Water Blocking layer(Material)
Water Blocking Tape
Outer Sheath
Material
MDPE
Thickness(±0.1)mm
1.6
Cable Diameter(±0.2)mm
10.6
Min. bending radius
Without Tension
10.0×Cable-φ
Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.

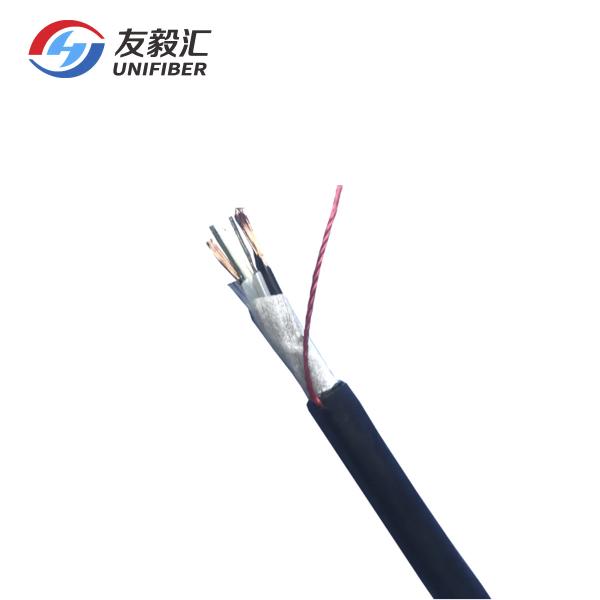

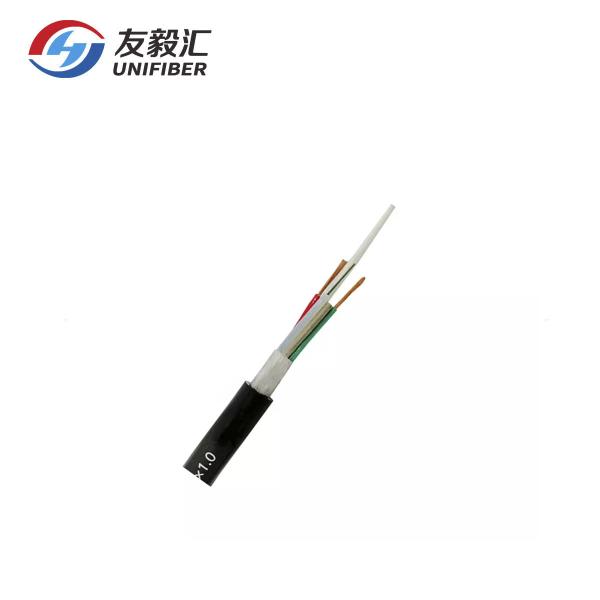

Picture of Copper Wire Photoelectric Hybrid Fiber Optical Cable Composite Power fiber optic cable for Access Network

FTTA Hybrid Fiber Optic Cable Copper Wire Power Photoelectric Composite Cable
