Product :
PM Tap Isolator WDM Hybrid
Wavelength :
1064nm or 1550nm
Tap ratio :
01=1%, 02=2%, ......, 50=50%
Pigtail Type :
0=250μm bare fiber, 1=900μm loose tube
Package :
φ5.5x50mm Steel Tube
Application :
Fiber amplifier,fiber laser
Description

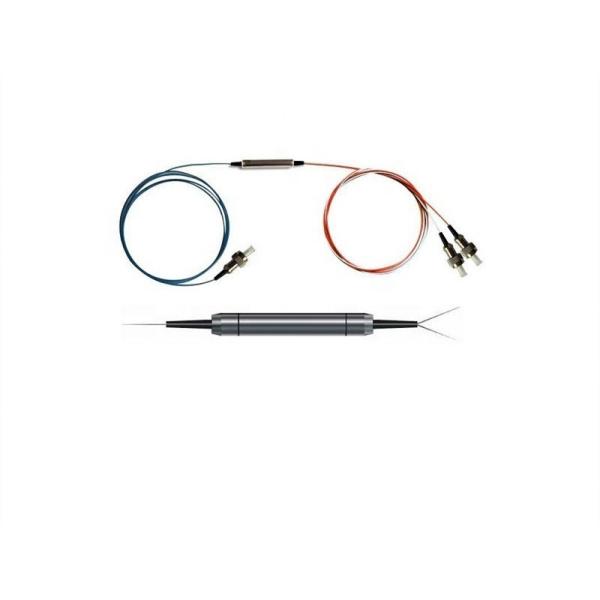

Unifiber's polarization maintaining (PM) fiber-optic tap isolator combines the functionality of PM isolator, PM fiber coupler and PM FWDM into one compact package to saving cost and device dimension. it has extremely low insertion loss, and can improve the fiber amplifier,fiber laser performance.

Parameter Unit Value
Stage - Single Dual Single Dual
Signal Wavelength nm 1064±5 1550±15
Signal Wavelength Range nm 1020~1080 1520~1580
Max. Excess Loss, λc, at 23℃ (Input to Output) dB 2.5 3.5 1.3 1.4
Min. Signal Isolation, λc,±15 at 23℃(Output to Input) dB 35 45 28 45
Isolation for Channels Signal Channel dB 30
Pump Channel dB 12
Tap Ratio % 1~50
Pump Wavelength Range nm 980±10
Max. Insertion Loss (Pump Channel) dB 0.7
Min. Extinction Ratio at 23℃, only for PM Channel dB 20
Min. Return Loss dB 50
Max. Optical Power(CW) mW 300
Max.Tensile Load N 5
Operating Temperature ℃ -5~+50
Storage Temperature ℃ -40~+85

Working Axis Type:

Option 1, Forward pump: Input to Tap: Both axis working; Input to Output: Fast axis blocked

Option 2, Forward pump: Input to Tap: Both axis working; Input to Output: Both aixs working

Option 3, Backward pump: Input to Tap: Fast axis blocked; Input to Output: Fast axis blocked

Option 4, Forward pump: Input to Tap: PM to SM, PI; Input to Output: Fast axis blocked

Option 5, Forward pump: Input to Tap: PM to SM, PI; Input to Output: Both axis working

Option 6, Backward pump: Input to Tap:PM to SM, PS; Input to Output: Fast axis blocked

PI: Polarization Insensitive

PS: Polarization Sensitive

Part Number: PMTIWDM-1111-2344-555-666-777-89A-BCDE
1111 -Operating Wavelength: 1598=T1550/R980nm,0398=T1030/980nm
2 -Axis Alignment: 1=Option 1, 2=Option 2, 3=Option 3, 4=Option 4, 5=Option 5, 6=Option 6
3 -Core Stage: S=Single-core Stage, D=Dual-core Stage
44 -Tap ratio: 01=1%, 02=2%, ......, 50=50%
555 -Fiber type for In & Out: 001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
666 -Fiber type for Pump: 001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
777 -Fiber type for Tap: 001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
8 -Package Dimension: 0=φ5.5x35mm, 1=φ5.5x50mm, S=Specified
9 -Pigtail Type: 0=250μm bare fiber, 1=900μm loose tube
A -Fiber Length: 0=0.8m,1=1m
B -Connector Type for Input-Output-Pump-Tap 0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
