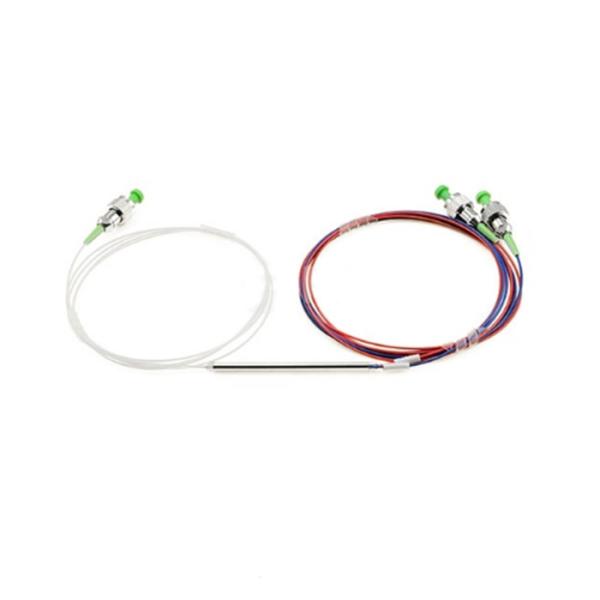

1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Fused WDM Splitter
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Blister Case
Product :
Fused WDM Splitter
Wavelength :
980/1550 or1480/1550nm
Package :
Steel tube
Connector :
SC/FC/ST/LC
Fiber :
Single mode Fiber
Application :
EDFA
Description

Single mode WDM components can effectively combine or separate single mode signals at two wavelength ranges. Available in three wavelength ranges (980/1550 nm, 980/1310 nm, and 1480/1550 nm). Based on the proven Fused Biconic Taper (FBT) technology, these multiplexers provide broad operating wavelengths and low insertion loss. All our WDM are available with any connector style (FC as standard, other connectors available upon request), and include 900um loose tube to protect the fibers.

Features Applications
Low Insertin Loss Erbium Doped Fiber
High Isolation Amplifiers (EDFA)

Performance Specifications

Parameter 980/1550nm WDM 1480/1550nm WDM
Grade P A P A
Max. Insertion Loss (dB) 0.20 0.25 0.25 1.35
lsolation(dB) ＞20 ＞18 ＞16 ＞14
Polarization Sensitivity(dB) ＜0.05 ＜0.10 ＜0.10 ＜0.15
Operating Wavelength (nm) 980±10/1550±20 1480/1550±5
Directivity(dB) ＞60
Operating Temperature (℃) -10~+70(-40 ~ +85 available upon request)
Storage Temperature (℃) -40~+85
Fiber Pigtail Length (m) 1 m or custom length
Fiber Type Corning HI 1060 or OFS980, Corning 980, Corning SMF-28e
Port Configuration 1x2 or 2x2
Package Dimension F,G,H

Note: All values referenced are without connector.

1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA1550nm Single Mode PLC Splitter 1X2 Fused WDM Splitter For EDFA
