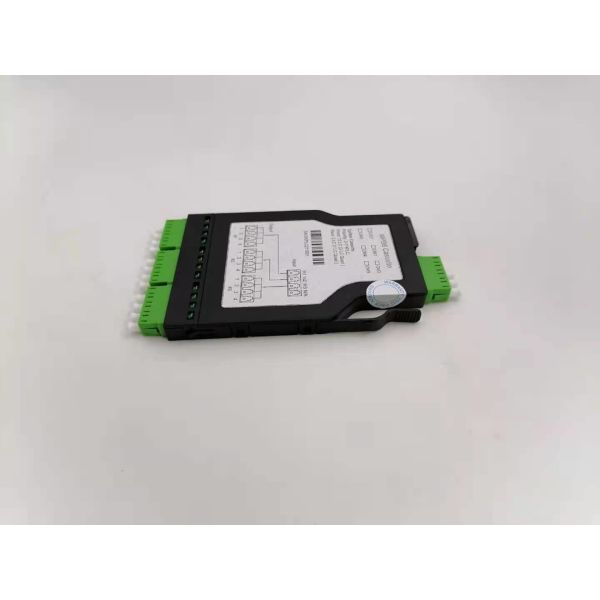

Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
MPB6-12LC
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 business days
Packaging Details :
Carton box
Product :
Fiber cassette card fully connectorized with 1X4 splitter and 12 LC/APC
Ports :
12
Splitter :
3pcs 1x4 PLC splitter
Connector :
Quad LC/APC
Features :
High density, flexibility and modularity
Application :
Data Center
Description

This MPB6-12LC cassette is specially designed to optimize fiber optic cable management, plug and play, rapid deployment, and increase flexibility and manageability to reduce installation costs.Unifiber offer fiber cassettes with different functions like termination, splicing, also can load with optical splitters to realize splitting, these cassettes normally to be loaded with high density patch panel 1RU, 2RU and 4RU.

Product Features

3pcs 1X4 splitter pre-connectorized
12 LC/APC Adapter pre-loaded
12F MPO/MTP fiber connection.
LC can use low-loss connectors.
Common and elite MTP/MPO connectors.
The fiber types are SM, MM (OM1/OM2/OM3/OM4/OM5).
It is made of cold-rolled steel plate with frosted surface.


Applications
Storage area network.
Fibre Channel.

Data center and infrastructure.

Specification

Connector Type
Fiber cassette card fully connectorized with 1X4 splitter and 12 LC/APC
Polish
PC(MM); APC(SM)
Housing Colour
MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)
≤ 0.10 dB
Insertion loss, max. (MTP/MPO)
≤ 0.3 dB
Return loss (MTP/MPO SM)
PC >55dB; APC> 60dB
Insertion Loss, Typical (LC/SC)
≤ 0.10 dB
Insertion loss, max. (LC/SC)
≤ 0.3 dB
Return loss (LC/SC SM)
PC >55dB; APC> 65dB
Durability(500 Matings)
< 0.2dB

Fully Connectorized Fiber Cassette Card 1X4 Splitter 12 LC APC
