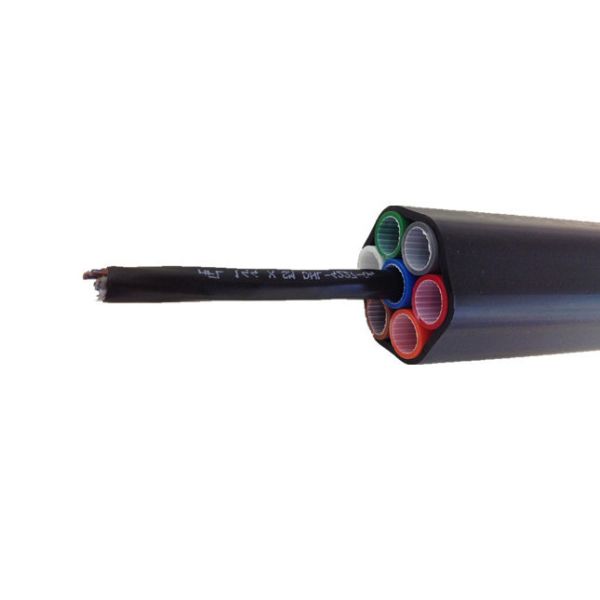

2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
Specifications
Brand Name :
UNIFIBER-OEM
Model Number :
Micro Loose Tube Air Blown Fiber Optic Cable
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10KM
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000km/Day
Delivery Time :
3~5 business days
Packaging Details :
Carton box
Product :
Micro Loose Tube Air Blown Fiber Optic Cable
Fiber Counts :
2~144 cores
Fiber Type :
G652D/G657A1/G657A2/G657B3

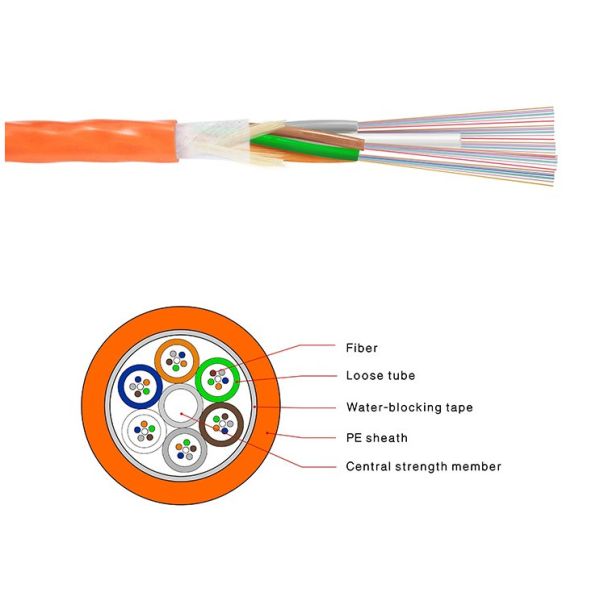

Structure :
Stranded layer
Cable Jacket :
PE HDPE
Installation :
Duct, air blown
Description

Air Blown Mini Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties. It is usually applied in FTTX.
Unifiber manufactures a wide range of cables from 2–144fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armor provide the right level of protection.

Features

1.Using centre tube design less than 24f to get more compact structure
2.Small outer diameter, light weight , low friction sheath material
3.Accurate excess fibre length control to get stable cable performance
4.Stable temperature cycling performance by special process control
5.High speed, long distance air-blowing , efficient installation
6.Optional LSZH outer sheathing, applicable for access to indoor
7.Optional 200μm mini optical fibre to get smaller outer diameter

Specification

Cable Type GCYFXTY-XB1.3(MTE + Cable diameter)
MTE2.0 MTE2.3 MTE2.5 MTE2.8
Fiber Count 2~4 6~12 2~12 14~24
Thickness of HDPE sheath Nominal value:0.20mm, Average value:0.15mm
Nominal Overall Diameter 2.0±0.1mm 2.3±0.1mm 2.5±0.1mm 2.8±0.1mm
Weight 4.0 kg/km 5.0 kg/km 6.0 kg/km 7.0kg/km
Cable Fiber Attenuation (single mode) 0.35dB/km max @1310nm 0.22dB/km max @1550nm
Max. Tensile Strength 40N 50N 60N 60N
Max. Crushing force 600N/100mm
Min. Bending radius -Static / Dynamic 10 / 20 outer Φ
Temperature Storage -30~+50℃;Installation-10~+40℃;Operation-20~+50℃
Cable service life (estimate value) 25 years

2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable2~144C G652D Bulk Fiber Optic Cable LSZH Non Metallic Fiber Cable
