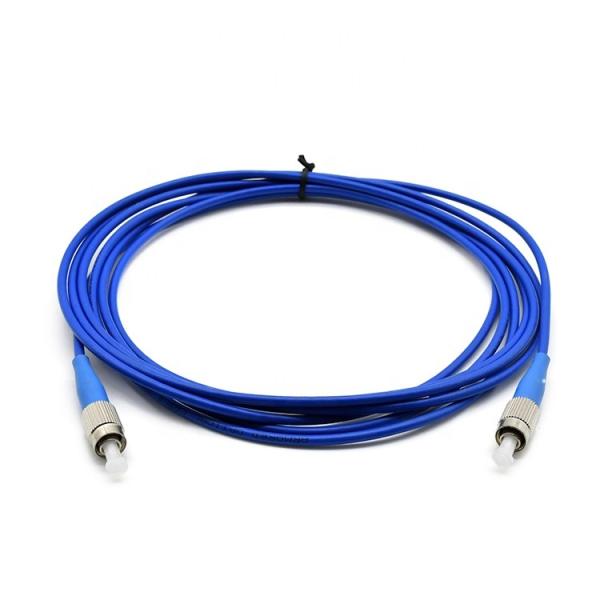

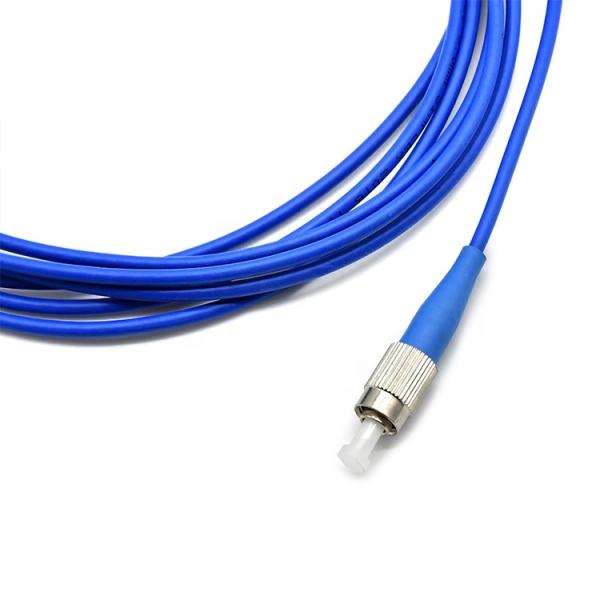

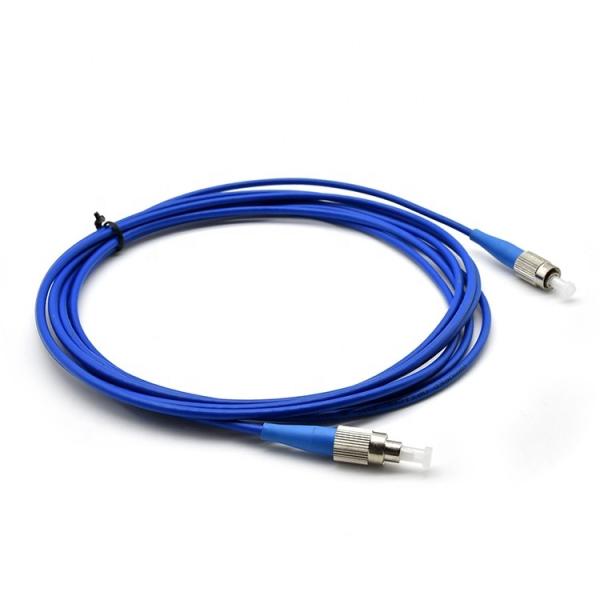

Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Rodent Resistant Armored Fiber Optic Patch Cord Single Mode Simplex 3.0mm FC/UPC-FC/UPC
Specifications
Brand Name :
Unifiber or OEM
Model Number :
armored fiber optic patch cord
Certification :
ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/day
Delivery Time :
3~5 days
Packaging Details :
PE bag
Product :
Armored fiber optic patch cord
Cable Jacket :
LSZH
Jacket color :
Blue
Fiber Type :
Single mode G657A1
Connector :
FC/UP
Cable DIameter :
3.0mm
Description

Rodent resistance armoured fiber optic patch cord single mode simplex 3.0mm FC/UPC-FC/UPC

Description:

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.

Feature:
◈ Trampling Resistance
◈ Moisture Resistance
◈ Gas Resistance
◈ Oil Resistance
◈ Rodents/Pests Resistance
Application:
◈ Indoor, Hazardous Areas
Connector Type
LC LC SC FC ST optional
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Fiber Count
Simplex
Insertion Loss
≤0.3dB
Return Loss
UPC ≥50dB, APC ≥60dB
Cable Diameter
3.0mm
Cable Jacket
PVC / LSZH
Polarity
/
Operating Temperature
-40~75°C
Zirconia Ceramic Ferrule
◈ High-precision ceramic ferrules are used to ensure the stability and durability of optical fiber connectors.
◈ The precision ferrules can reach up to 1000 times insertion lifespan.
Optional Connectors
◈ Tough and corrosion-resistant, not easily deformed. ◈ Various connectors are available, LC/SC/FC/ST/LSH, UPC/APC polish, to suit the needs of different applications.
Fiber Optic Connectors Guidance

LC Typical Applications

High-density connections, SFP and SFP+ transceivers and LC adapters.

SC Typical Applications

Datacom and telecom, GPON, EPON, GBIC and SC adapters.

ST Typical Applications

Datacom, FTTH, corporate networks.

FC Typical Applications

Datacom, telecom, measurement, single mode lasers
Polish Type
PC suited for telecom operator equipment. UPC suited for ethernet network equipment, devies, media converters and fiber switches. APC suited for high bandwidth applications and long distance links, such as FTTX.
PC/UPC is generally blue, APC is green

Detailed Images

Product tags

rodent resistant fiber optic cable

,

anti rodent fiber optic cable

,

patch cord fiber multimode
