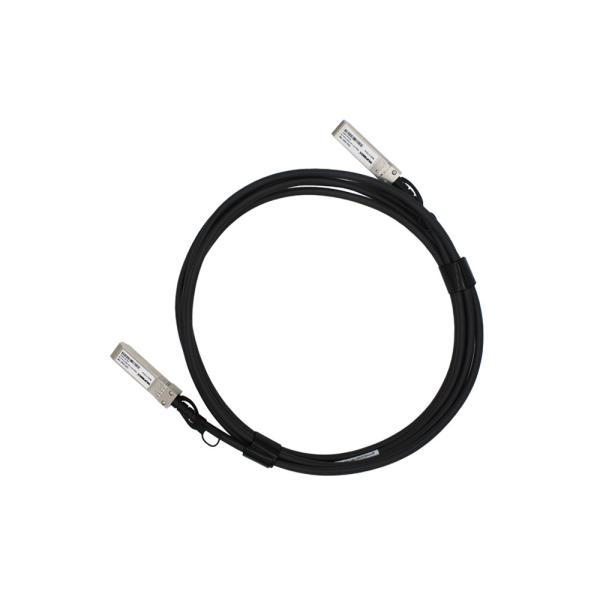

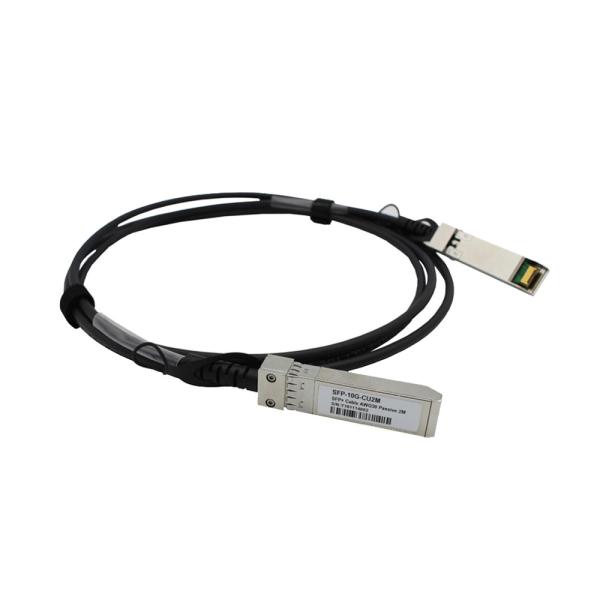

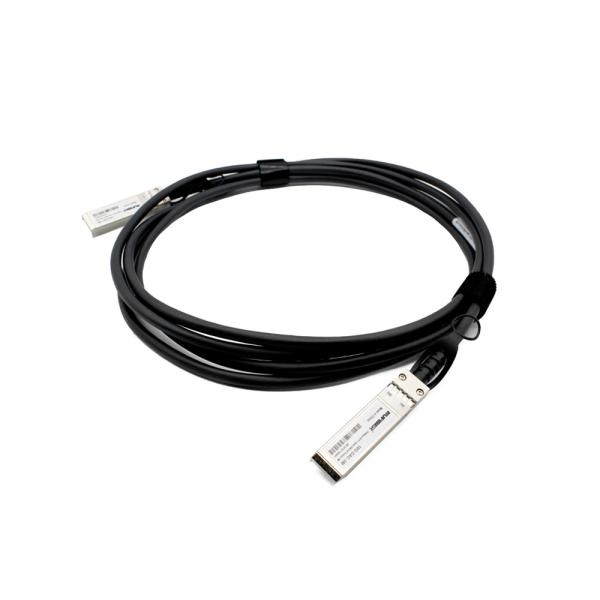

DAC Direct Attach Copper Cable 30AWG 1M 10G SFP+ Passive
DAC Direct Attach Copper Cable 30AWG 1M 10G SFP+ Passive
DAC Direct Attach Copper Cable 30AWG 1M 10G SFP+ Passive
DAC Direct Attach Copper Cable 30AWG 1M 10G SFP+ Passive
DAC Direct Attach Copper Cable 30AWG 1M 10G SFP+ Passive
DAC Direct Attach Copper Cable 30AWG 1M 10G SFP+ Passive
Specifications
Brand Name :
Unifiber or OEM
Model Number :
10G SFP+ DAC Copper Cable
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pcs/day
Delivery Time :
3~5 days
Packaging Details :
PE bag
Product :
10G SFP+ Passive Direct Attach Copper Cable 1M
Data rate :
10G
Connector :
SFP+
Length :
1/2/3/5/7Meter Optional
Cable Dimension :
24~30AWG
OEM brand :
Support
Description

High speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.

Applications

10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect


Features
Active Copper (Equipped with chipset as signal repeater) (Cable Length: 5~15m)
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP cages +Switches
EEPROM signature can be customized.
Low Power Consumption < 0.5W
Temperature Range: 0~ 70 °C
RoHS-6 Compliant

High Speed 10G SFP+ Passive Direct Attach Copper Cable 1M
SFP+-DAC-1M~10M
SFP+ to SFP+ DAC,1M~10M
SFP28-DAC-1M~10M
25G SFP28 DAC,1M~10M
QSFP-1M~10M
40G QSFP+ to QSFP+ DAC 1M~10M
Q4SFP-1M~10M
40G QSFP+ to 4SFP+ DAC 1M~10M
QSFP28-1M~10M
100G QSFP28 to QSFP28 1M~10M
Q4SFP28-1M~10M
100G QSFP+ to 4SFP+(25G) DAC 1M~10M
