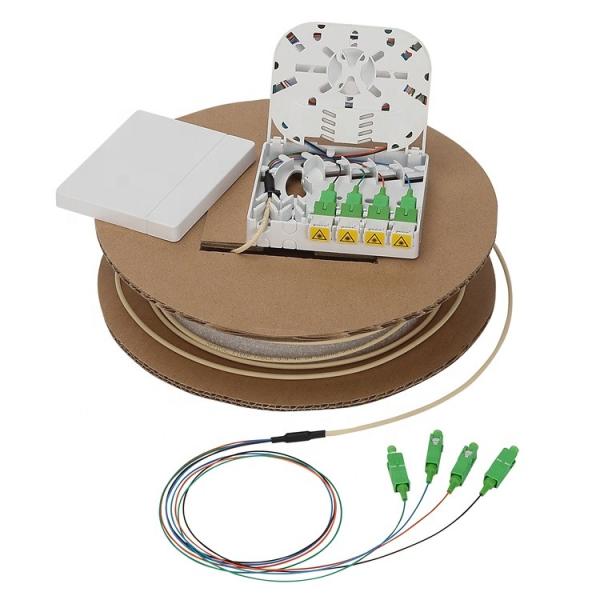

4C Terminated Fiber Optic Cable SC APC 10-200m Ftth Fiber Wall Outlet
4C Terminated Fiber Optic Cable SC APC 10-200m Ftth Fiber Wall Outlet
4C Terminated Fiber Optic Cable SC APC 10-200m Ftth Fiber Wall Outlet
4C Terminated Fiber Optic Cable SC APC 10-200m Ftth Fiber Wall Outlet
Specifications
Brand Name :
Unifiber or OEM
Model Number :
Ftth Fiber Wall Outlet 4 Cores Terminated Fiber Optic Cable
Certification :
ROHS
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
3~5 days
Packaging Details :
Carton box
Product :
Ftth Fiber Wall Outlet 4 Cores Terminated Fiber Optic Cable
Fiber Ports :
4 ports
Connector :
SC/APC
Cable Length :
10-200m
Fiber Type :
G657A2
Apllication :
FTTH
Description

Ftth Fiber Wall Outlet 4 Cores pre-terminated wall outlet with drop cable is mainly used in FTTH optical network applications. It comes as a kit that is complete with a wall outlet, including a drop cable and 1-4 fibers. With these components, it becomes quite easy to use the kit in any application that you may have that uses it.

Features:
The availability of different lengths of the cable makes it versatile and hence usable in different applications
The two types of cable are suitable for indoor and outdoor use
The design including the cover makes it easy to mount the wall outlet either on DIN rail or on the wall
The 1, 2, or 4 cores in the kit make it easy to install the product

Application:
1. FTTH / FTTX system
2. LAN WAN MAN network
3. GPON ODN network
4. Telecommunication

Specification:

Model Ftth Fiber Wall Outlet 4 Cores Terminated Fiber Optic Cable SC/APC 10-200m
Type Pre-Terminated
Cable Structure Round Drop Cable
FTTH F8 FRP
FTTH F8 Steel
FTTH Flat FRP
FTTH Flat Steel
Types of Storage fiber G657A1,G657A2,G657B3,OM1, OM2, OM3, OM4, OM5
Connector 4 pcs of SC or 4 pcs LC Duplex
Capacity 1,2,4 cores
Fusion splice sleeves Fixed by screw
Size 40-45mm
Input cable 3mm Drop cable or F 8 (2*3mm)
Installation Wall Mounting
Length (meters) 10-200m
Operating temperature -40 °C to +70°C
Packaging Dimensions 25.5x25.x6cm

4C Terminated Fiber Optic Cable SC APC 10-200m Ftth Fiber Wall Outlet
