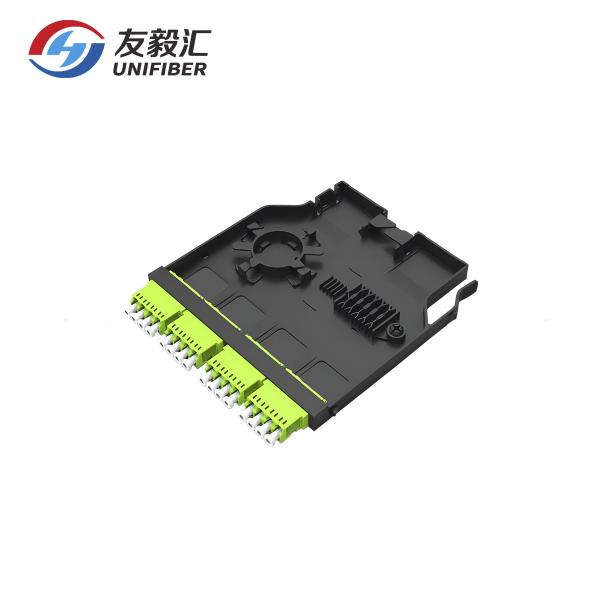

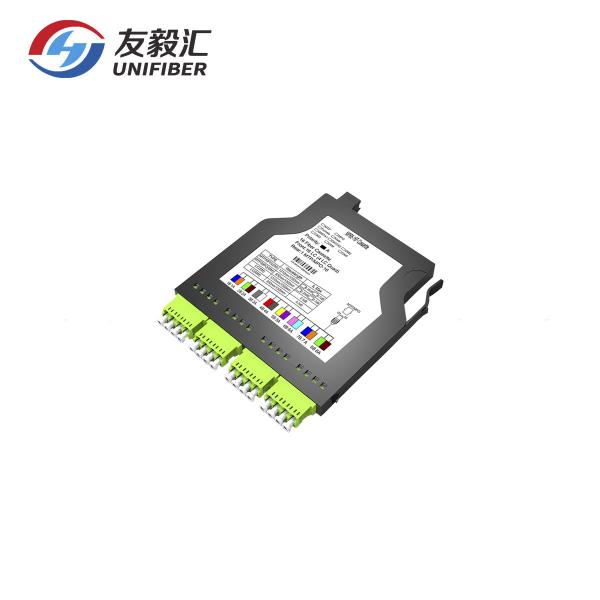

MPB6 High Density Pre-terminated 16 Fiber MPO to LC Cassettes Type A
MPB6 High Density Pre-terminated 16 Fiber MPO to LC Cassettes Type A
MPB6 High Density Pre-terminated 16 Fiber MPO to LC Cassettes Type A
MPB6 High Density Pre-terminated 16 Fiber MPO to LC Cassettes Type A
MPB6 High Density Pre-terminated 16 Fiber MPO to LC Cassettes Type A
MPB6 High Density Pre-terminated 16 Fiber MPO to LC Cassettes Type A
Specifications
Brand Name :
Unifiber or OEM
Model Number :
MPB6
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
16 Fiber Cassettes
Fiber Counts :
16
Fiber Type :
SM-OM3-OM4-OM5
Polarity :
Type A
Front Connector :
LC,CS, SC, MPO, MTP
Rear Connector :
MPO, MTP
Material :
Plastic
Description

This 16 Fiber Cassette Module Provide the interface between tge bulk cable and the LC duplex cables that connect directly into the electronics. it protect and organize heat-shrink fusion spliced fibers(up to 16 fibers) inside a cassette. the modular design enables faster field splicing and simple management of pigtails within the housing Protective conduit can also be snapped into the rear of the module in cases where higher density cables are spliced or where non-standard cable constructions are used. fusion splicing is generally more common in single mode applications where operators consolidate cables into high-density cross-connect racks.

Features:

16 LC or 8 SC fiber optic connection.
16F MPO/MTP fiber connection.
LC can use low-loss connectors.
Common and elite MTP/MPO connectors.
The fiber types are SM, MM (OM1/OM2/OM3/OM4/OM5).
It is made of cold-rolled steel plate with frosted surface.

Application

High-density fiber optic cabling
Supports up to 1U-216F
100G upgrade to 400G/800G

Specification

Connector Type
8-Fiber, 12-Fiber,16-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish
PC(MM); APC(SM)
Housing Colour
MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO)
≤ 0.10 dB
Insertion loss, max. (MTP/MPO)
≤ 0.3 dB
Return loss (MTP/MPO SM)
PC >55dB; APC> 60dB
Insertion Loss, Typical (LC/SC)
≤ 0.10 dB
Insertion loss, max. (LC/SC)
≤ 0.3 dB
Return loss (LC/SC SM)
PC >55dB; APC> 65dB
Durability(500 Matings)
< 0.2dB
