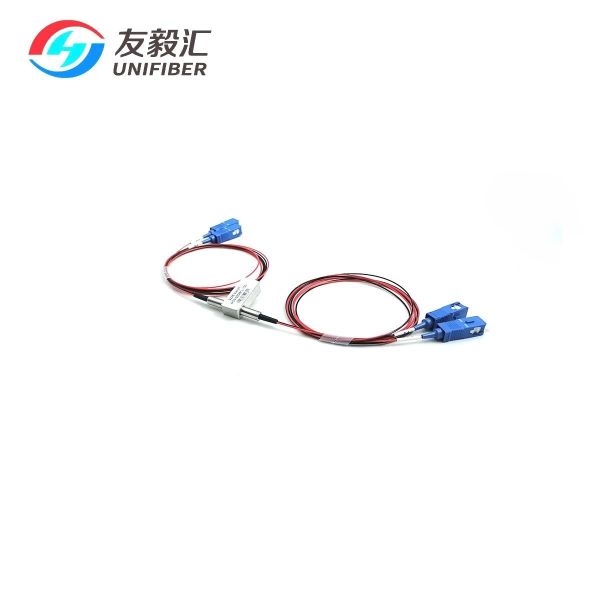

2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC
2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC
2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC
2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC
2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC
2x2 Bypass Mechanical Optical Switch 1310nm/1550nm No-Latching 3V SC/UPC
Specifications
Brand Name :
Unifiber or OEM
Model Number :
2x2 Mechanical Bypass Optical Switch
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100pcs/day
Delivery Time :
5~8days
Packaging Details :
Blister Case
Product :
Bypass Mechanical Optical Switch
Wavelength :
1310nm/1550nm
Power Supply :
3V or 5V
Control Model :
Non-Latching
Fiber Diameter :
900um Loose Tube
Connector :
SC/UPC
Description

2x2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The 2x2B Mechanical Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Features:

Short switching time

Highly Stable & Reliable
Compact design, Miniature size
Low Insertion Loss
Wide operating wavelength Range
Fail-Safe Latching and Non-latching
Single mode or Multimode optional

Application

System Monitor
Configurable OADM
Metropolitan Area Network
R&D in Laboratory

Specification

Parameter
2×2B-MM/SM
Wavelength Range(nm)
850±40
1260~1650
Operating Wavelength
850
1310/1490/1550/1625/1650
Insertion Loss(dB)
Typ:0.8 Max:1.2
Typ:0.6 Max:0.8
Return Loss(dB)
MM≥30?SM≥50
Crosstalk(dB)
MM≥45?SM≥55
Polarization Dependent Loss(dB)
≤0.05
WaveLength Dependent Loss(dB)
≤0.25
Temperature Dependent Loss(dB)
≤0.25
Repeatability(dB)
≤±0.02
Power Supply(V)
3.0 or 5.0
Lifetime(time)
≥10^7
Switch Time(ms)
≤8
Transmission Power(mW)
≤500
Operating Temperature(℃)
-20~+70
Storage Temperature(℃)
-40~+85
Weight(g)
16
Dimension(mm)
(L)27.0×(W)12.0×(H)8.2
