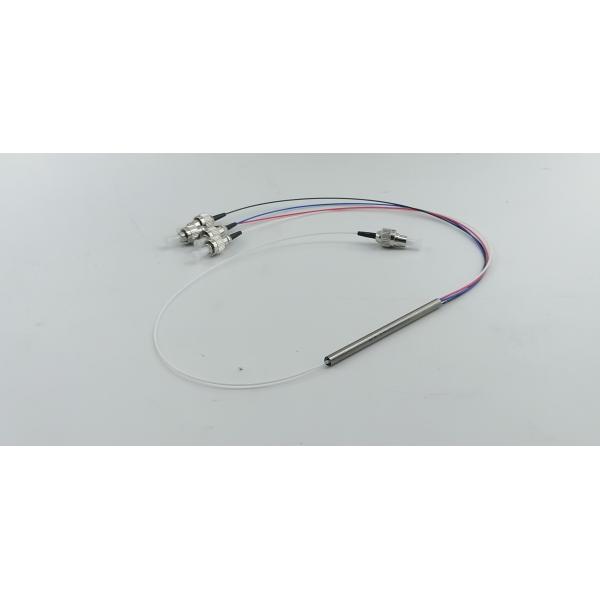

1x4 Monolithic FBT Fused Single Mode Fiber Coupler 1310nm 1550nm
1x4 Monolithic FBT Fused Single Mode Fiber Coupler 1310nm 1550nm
1x4 Monolithic FBT Fused Single Mode Fiber Coupler 1310nm 1550nm
1x4 Monolithic FBT Fused Single Mode Fiber Coupler 1310nm 1550nm
1x4 Monolithic FBT Fused Single Mode Fiber Coupler 1310nm 1550nm
1x4 Monolithic FBT Fused Single Mode Fiber Coupler 1310nm 1550nm
Specifications
Brand Name :
OEM
Model Number :
1x4 Single Mode Fiber Coupler
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs/day
Delivery Time :
5~8days
Packaging Details :
Carton
Product :
1x4 Single Mode Fiber Coupler
Grade :
P grade
Port No. :
1x4
Wavelength :
1310nm or 1550nm
Coupling Ratio :
Evan
Pigtail Type :
900um Loose tube
Package :
3.0*54mm Steel Tube
Description

1x3(1x4) Monolithic Single Mode Coupler is fused by 3 or 4 fibers under heat at the same time. Keep only 1 input fiber and 3 or 4 output fibers as per demands. For 1x3 Monolithic Coupler, the shortest steel tube Unifiber can build is 30mm to cater to customers’ special requirements.

Features

Low excess loss
Low PDL

Dual operating window
High stability and reliability
Application
Optical communication systems
CATV
Local Area Networks
Testing instruments
Specification
　 1×4 WBC 1×4 DWC 1×4 TWC 　
1×4 SSC 　
Operating wavelength (nm) 1310 or 1550,others on request 1310 and 1550 1310,1490 and 1550
Operating bandwidth (nm) ±15 ±40 ±40 1310±40,1490±10,1550±40
Port configuration 1×4
Grade P A P A P A P A
Typical excess loss (dB) 0.15 0.25 0.2 0.3 0.3 0.4 0.3 0.4
Insertion Loss (dB) ≤7.0 ≤7.4 ≤7.1 ≤7.4 ≤7.2 ≤7.5 ≤7.2 ≤7.5
PDL (dB) ≤0.20 ≤0.25 ≤0.20 ≤0.25 ≤0.25 ≤0.30 ≤0.25 ≤0.30
Uniformity (dB) ≤1.0 ≤1.4 ≤1.2 ≤1.6 ≤1.4 ≤1.8 ≤1.4 ≤1.8
Directivity (dB) ≥55
Operating temperature (℃) -40 ~ +85
