4 Port Fiber Optical Network Series Optical Bypass Protection System
4 Port Fiber Optical Network Series Optical Bypass Protection System
Specifications
Brand Name :
Global Tech
Model Number :
GT-BPS
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
To be negotiated
Payment Terms :
L/C,TT, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
2 weeks after payment clear
Packaging Details :
Export Carton
Optical Port :
4
Description
4 Port Fiber Optical Network Series Optical Bypass Protection System
Product Overview
Global Tech Optical Bypass Protection System is a intelligent system which applied in fiber optical communication and able to bypass failed node. It can automatically indentified the status of power and optical signal in each node. The equipment would instantaneously switch while failure occurred in optical line. So that it can avoid obstacles blocking in the whole network which generated by failed node.

Features
Reduce downtime of communication, improve maintain efficiency, Automaticially restore in a very short time.Reduce the various lost which caused by failed node.increase the reliability of the transmission network or lines, improve the quality of service operators.
None stop of service while switching between main/backup router and online equipment.
Real time monitoring optical power of each site in network.
Support remote and local control which easy for management and maintaince.
Fully transparent transmission.


Technical Paramenters

Name Parameter
Switch time(ms) < 15
Adjusting wavelength(nm) 1310&1550
Power range -50 ～ +23 dBm
Accuracy ± 5％
Injection Loss(dB) <1.5
Crosstalk (dB) > 50
Return loss(dB) > 45
Maxly Power(mW) 300
Power Consumption(W) < 5
Optical port SC/PC
Programmable Interface RJ45,RS-232( or RS-485 )
Working Temperature Range (°C) -10 ～ 55
Storage Temperature Range (°C) -20 ～ 70
Working Power

DC:36 ～ 72V

AC:85 ～ 264V
Physical Type 19'1U stand

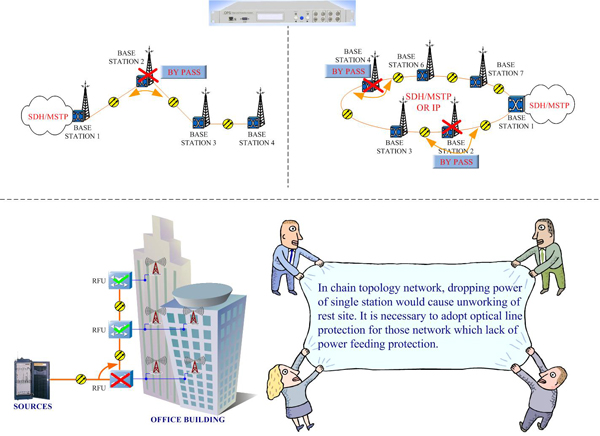

Application Diagram

4 Port Fiber Optical Network Series Optical Bypass Protection System
