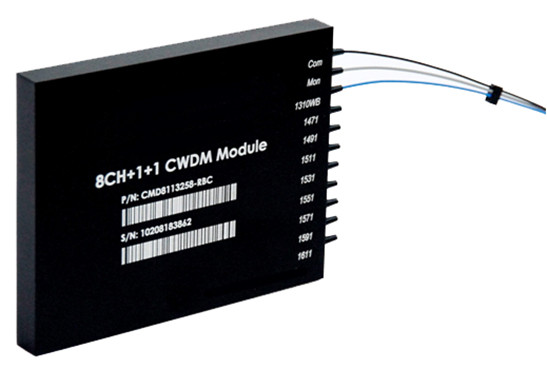

Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
Specifications
Brand Name :
Global Tech
Model Number :
GT-CWDM
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Pair
Price :
To be Negotiated
Payment Terms :
L/C, D/P, T/T, Western Union
Supply Ability :
10000 sets
Delivery Time :
2 weeks after payment clear
Packaging Details :
Export Carton
Bitrate :
100M up to 10G
ADM :
add/drop Mux
Feature :
support EDFA, BA and OLP
Description

Add / Drop CWDM,4/8/16 ch Coarse Wavelength Division Multiplexing Fiber Optical Network Series

Product Overview

GT-CWDM-4/8/16 is Global Tech’s CWDM platform, which is designed as a low-cost, massive-capacity, easy-deployed, flexible-application, traffic-transparent and expandable short haul WDM transport system. Nowadays, more and more widely applied in the metro networks, CWDM brings a new solution for the connection between Metro Access Network and Metro Core Network

Features

  • Seamlessly interwork with DATA (Ethernet), TDM (PDH, SDH) and SAN (Fiber Channel, ESCON, FICON) traffic.
  • Any rate interface 10Mbps~2.5Gbps.
  • Support unidirectional signal fiber or bidirectional signal fiber application.
  • Varied network topology with line and path protection over varied layers.
  • AC, DC power supply, or mixed power supply.

Technical Parameters

System Capacity

  • 4/8/16 wavelength
  • Channel rate, 100/155/622Mbps, 1/2.5/10Gbps
  • Single span length, 80 km
  • G.694.2 compatible

User Interface

  • 10M/ 100M Ethernet/ GE
  • STM-1/STM-4/STM-16/ STM-64
  • Fiber Channel
  • ESCON
  • FICON
  • Video
  • Any bit rate interface 10Mbps ~2.5Gbps

Optical Cable

  • G.652
  • G.653
  • G.655

Physical Dimension

  • 442mm (W)*135mm (H)*301mm (D).
  • ANSI 19”, 23” Rack.
  • ETSI 300mm(D), 600mm(D) Rack.

Network Management

  • Standard SNMP V2.0
  • TMF814 CORBA Northbound Interface
  • Standard MIB files, compatible with general SNMP Network Management System

Operation Environment

  • Working Temperature: -10℃~ 55℃
  • Storage Temperature: -40℃~ 85℃
  • Relative Humidity: 5%~ 95%, non-condensing
  • No corrosive and solvent gas, no dust and heavy EMI
  • Power Supply: DC -72~ -36V
  • Physical Dimension: 442mm(W)* 135mm(H)* 301mm(D)

Application Diagram

Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch

Coarse Wavelength Division Multiplexing Fiber Optical Network Series Add / Drop CWDM 4/8/16 ch
