SDI Fiber Optical Network Series SDI Optical Video Terminal

Product Overview

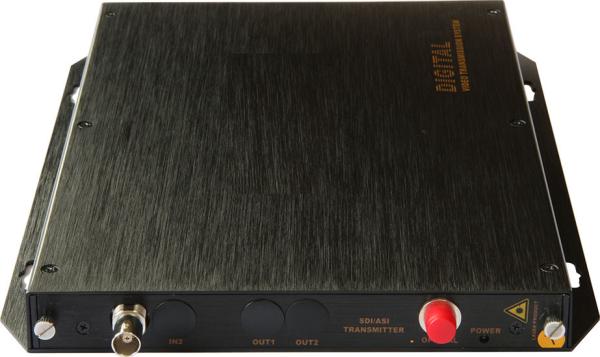

Global Tech GT-VO-5 series SDI Video Optical Terminal is designed and produced for the CATV industry as a high reliability, high performance serial digital optical transmission equipment, and supports signal formats from 19.4Mbps to 1.485Gbps. The system supports SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, DVB-ASI (EN50083-9) and other digital television standard. GT-VO-5 can fulfill all types of the requirements from the industry level applications.

Features

• Transport the bi-directional SDI digital TV signal over one fiber.
• The output optical wavelength supports 1310nm, 1550nm and the 16 CWDM wavelengths, ITU-T G.694.2 Compatible.
• Power and other parameters LED can monitor system status, and optional Network Management System.
• Support hot-swapping.
• Support 4U chassis, 1U chassis and standalone architecture.

Technical Parameters

Serial TV BNC Input

• SD TV Signal: SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M,M2S& DVB-ASI
• Equalization: 0-300m @ 270Mbps
• HD TV Signal: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other rate signals, 19.4Mbps- 1.485Gbps
• Equalization: 0-150m @1.485Gbps
• Emission Loss: >15DB
• Connector: 75Ω, BNC

Optical Interface

• Fiber Type: single mode, multi-mode optional
• Working Wavelength: 1310nm, 1550nm
• Tx Power: -5~ -10dBm, 0~ -5dBm for 60km
• Rx Sensitivity: -26dBm, -30dBm for 60km
• Working Wavelength: 1310nm, 1550nm and 16 CWDM wavelengths, from ITU-T G.694.2
• Jitter: < 0.2UI
• Connector: FC/PC, SC/PC

Serial TV BNC Output

• Signal Level: 800mV Nominal
• Rise/ Fall Time: 900ps Nominal
• Overshoot: < 10% Amplitude
• Reflection Loss: > 15dB
• Jitter: < 0.2UI
• Connector: 75Ω BNC

Operation Environment

• Working Temperature: 0°C~ 50°C
• Storage Temperature: -40°C~ 75°C
• Relative Humidity: 5%~ 95%, non-condensing
• No corrosive and solvent gas, no dust and heavy EMI
• EMI/ RFI comply with FCC Part 15 Class A, EU EMC
• MTBF: > 100,000 hours
• Power Supply: DC 12V
• Power Consumption: 12W
• Physical Dimension:Central Office Chassis:438mm(W)* 45mm(H)* 270mm(D) . CPE Standalone:260mm(W)* 25mm(H)* 205mm(D)

Application Diagram
