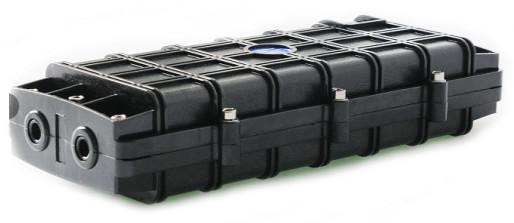

DA-FOSC-IM48-A-011-1 Long-Lasting PC Plastic Splice Closure, 48 Fibers Capacity
DA-FOSC-IM48-A-011-1 Long-Lasting PC Plastic Splice Closure, 48 Fibers Capacity
DA-FOSC-IM48-A-011-1 Long-Lasting PC Plastic Splice Closure, 48 Fibers Capacity
DA-FOSC-IM48-A-011-1 Long-Lasting PC Plastic Splice Closure, 48 Fibers Capacity
Specifications
Brand Name :
dawnergy
Model Number :
DA-FOSC-IM48-A-011-1 In-line
Certification :
CE
Place of Origin :
CHINA
MOQ :
100
Price :
53.2USD
Payment Terms :
T/T
Supply Ability :
500 per day
Brand :
Dawnergy
Product :
In-line Type Fiber Optic Splice Closure
Application :
FTTH/Telecommunication/CATV/Local Area NETWORK
Material :
PC
Installation :
Aerial, duct, direct buried
Max. Capacity of Fibers :
48
Weight :
Weight (kg) 1.5
Dimensions :
340 (H)x 150 (W) x 70 ( D) mm
Description

DA-FOSC-IM48-A-011-1 In-line Type Fiber Optic Splice Closure

Dawnergy's In-line fiber optic splice closure is a versatile equipment used for various fiber splicing applications, including connection, branching, and termination. This splice closure is equipped with 4 cable ports and can be efficiently utilized for aerial, wall-mounting, pipe-lined, and direct burial installations. We are committed to continuous research and development in the field of telecommunication connectivity solutions. Our splice closure is a dependable option that ensures the highest quality of information transmission.

Features

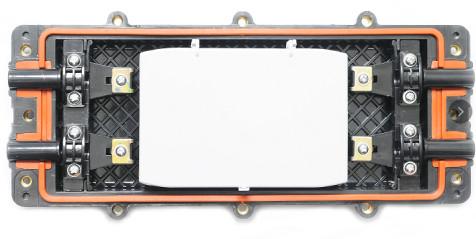

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Cable ports with mechanical sealing
  • Portable, impact resistant, corrosion resistant and lightning resistant

Applications

  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks

Specifications

Parameters Specification
Max. Capacity of Fibers 48
No. of Fibers/Tray 2pcs (24fibers per tray)
Number of In-out Ports 4
Cable Diameter (mm) 8~16
Installation Method Aerial, duct, direct buried
Insulation Resistance Between the metal component and the ground is ≥2× 104m Ω
Withstand Voltage No breakdown and no arcs between the metal component and the ground under the action of 15kV(DC)/1min
Fiber Radius of Curvature ≥30mm (internal control 40mm), no additional loss in the fiber tray
Tensile Axial tensile force ≥10 00N
Material PC
Dimensions H x W x D (mm) 340 x 150 x 70
Weight (kg) 1.5

Standard Package

No. Name Unit Quantity
1 Fiber Optic Splice Closure set 1
2 Protective Sleeves pieces Configuration as per capacity
3 Cable Ties piece Configuration as per capacity
4 Insulation Tape piece 1
5 Sealing Tape piece 1
6 Aerial-mounted Kit piece 1
7 Abrasive Cloth piece 1
8 Labeling Paper piece 1
9 Special Wrench piece 1
10 Installation Manual piece 1

Ordering Information

Example:

DA-FOSC-IM48-A-011-48C-1

In-line type, mechanical sealing; 48 fibers, 2 trays of 24 fibers/tray included; 4 cable ports, max capacity: 48 fibers; material: PP, dimensions (mm): 340 x 150 x 70

Ps: The actual fiber core number shall be subject to the contract

Our main products are:
Fiber Optic Cables,
Fiber Optical Splitters,
Fiber Optic Patch Cord,
Pigtails,WDM Modules,
Fiber Distribution Boxes,
Fiber Optic Sockets,
Optical Distribution Cabinets/Hubs,
Outdoor Telecom Cabinets,
Optical Distribution Frames,
Network Rack cabinets, etc.
