FullAXS DLCUPC-FullAXS DLCUPC, SM, G657A2 LSZH,IP65

Outdoor Optical Cable Patchcord

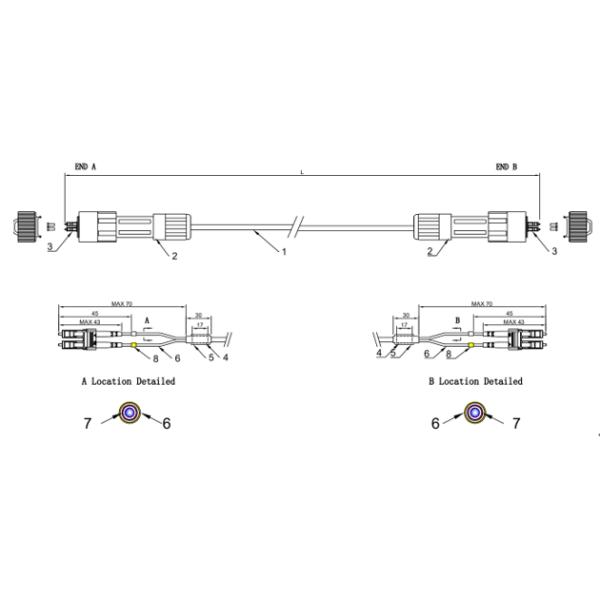

Outline Drawing

FullAXS DLCUPC-FullAXS DLCUPC, SM, G657A2 LSZH,IP65 Outdoor Optical Cable Patchcord

L = PRODUCT NUMBER SUFFIX IN mm

Length Tolerance
L ≤10000 +100/-50mm
10000< L<50000 +200/-100mm
L≥50000 +400/-100mm

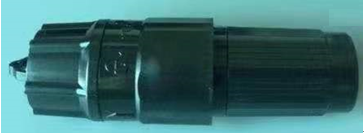

Connector Type

FullAXS DLCUPC-FullAXS DLCUPC, SM, G657A2 LSZH,IP65 Outdoor Optical Cable Patchcord

Components:

No. Name Description
1 Cable

Optical Cable, G657A2, Single-mode, 2 Core with

0.9 mm Fiber, OD 4.8 mm, Black LSZH
2 Connector Fullaxs
3 Connector LC3.0 Duplex for Single-mode Fiber, Blue, Tube for LC Connector, White
4 Rubber Heat Shrinkable Tube Black, OD 6.4mm L=17mm
5 Rubber Heat Shrinkable Tube Black, OD 6.4mm L=30mm
6 Flexible Protective with Steel Tube OD 2.8mm L=52mm
7 Flexible Protective Tube Black LSZH, OD 2.0mm L=72mm
8 Heat Shrinkable Tube White /Yellow OD3.0mm L=5mm

Application environment

  • Application: Indoor and Outdoor
  • Installation Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +70°C
  • Operating Temperature: -40℃to +75℃
  • Storage humidity: 0～80%RH

Main Components

  1. Cable

FullAXS DLCUPC-FullAXS DLCUPC, SM, G657A2 LSZH,IP65 Outdoor Optical Cable Patchcord

GYFJH-2B6(4.8mm)

No. Construction Parameters
1 Jacket LSZH/Black 4.8±0.2
Thickness 1.1±0.1
2 Filler Water glass yarn /
3 Tight buffer Blue, red /Hytrel 0.9±0.05 mm
4 Fiber Specifications 9/125 (G.657A2)
5 Tensile strength

Static 400 N

Dynamic 700 N
6 Water Penetration IEC 60794-1-2 F5B, 3m cable 1m water 24h water proof
7 Vertical Flame Spread IEC 60332-1-2
8 UV Resistance ISO 4892-3

Fiber performance of Bow-Type- G.657.A2

No. Description Parameters
1 Mode field diameter Wavelength 1310nm
Range of nominal values 8.6μm -9.5μm
Tolerance ±0.4 μm
3 Cladding diameter Nominal 125.0μm
Tolerance ±0.7 μm
4 Core concentricity error ≤0.5μm
5 Cladding non-circularity ≤1%
6 Coating diameter Nominal 245μm
Tolerance ±10μm
7 Coating-cladding concentricity error ≤12.5μm
8 Uncabled fiber macro bending loss Radius(mm) 15 10 7.5
Number of turns 10 1 1
Max. at 1550 nm(dB) 0.03 0.1 0.5
Max. at 1625 nm (dB) 0.1 0.2 1.0
9

Attenuation Typical

(In Cable)

 1310 / 1550 nm (dB/km) ≤ 0.35 / ≤ 0.21
10 Other parameters meet standard ITU-T G.657

  1. Patch cord
No. Description Parameters
1 Type FPM LC Duplex- FPM LC Duplex
2 Color Body / Cap / Hood Blue / White / White
3 Flame UL94 V-0
4 Polishing UPC
5

Length

limited

 FPM

Max.130 mm (End A)

FullAXS DLCUPC-FullAXS DLCUPC, SM, G657A2 LSZH,IP65 Outdoor Optical Cable Patchcord
6 FPM

Max.130 mm (End B)

FullAXS DLCUPC-FullAXS DLCUPC, SM, G657A2 LSZH,IP65 Outdoor Optical Cable Patchcord
7 3D End Face Geometry Radius 7 - 25 mm, IEC 61300-3-16
Vertex Offset < 50 μm, IEC 61300-3-15
Fiber Protrusion ≤ 50 nm, IEC 61300-3-23
Fiber Withdrawal ≤ 50 nm, IEC 61300-3-23
