Dome Type Fiber Optic Splice Closure
Dome Type Fiber Optic Splice Closure
Dome Type Fiber Optic Splice Closure
Dome Type Fiber Optic Splice Closure
Dome Type Fiber Optic Splice Closure
Dome Type Fiber Optic Splice Closure
Specifications
Brand Name :
Dawnergy
Place of Origin :
CHINA
Payment Terms :
L/C, D/A, D/P, T/T
Max. Capacity of Fibers :
288
No. of Fibers/Tray :
24
No. Trays :
12
Sealing Method :
Mechanical
Dimensions (mm) :
610 × Φ260
Weight (kg) :
4
Description

DA-FOSC-DM288-P-829-C

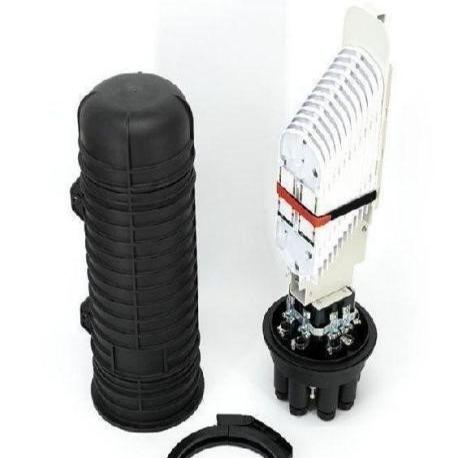

Dome Type Fiber Optic Splice Closure

Dawnergy's Dome type fiber optic splice closure is a multifunctional fiber splice equipment which is designed for cable connection and branching. This FOSC has 1 oval cable port and 6 round cable ports. It is suitable for aerial, wall, pole, manhole installation.

Features

  • Cable diameter: 1 Uncut port support φ10～22mm cable, 6 branch ports support φ8～18mm cable.
  • The internal fiber tray adopts hinge connection design, and the optical fiber welding is convenient and fast.
  • Installation method: Suitable for aerial, wall, pole, manhole, etc.
  • The box body adopts mechanical seal, and the cable mouth adopts mechanical seal.

Applications

  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks

Specifications

Parameters Specification
Max. Capacity of Fibers 288
No. of Fibers/Tray 24
No. Trays 12
Number of In-out Ports 1*Oval port: Φ10mm～22mm; 6 *Round port :Φ8mm～18mm
Sealing Method Mechanical
Installation Method Aerial/ Wall /Pole / Manhole mounted
Insulation Resistance Between the metal component and the ground is ≥2× 104m Ω
Withstand Voltage No breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min
Protection Lever IP68
PLC Splitter Support Yes, (max support to 2x16 mini type)
Material PP+GF
Dimensions (mm) 610 × Φ260
Weight (kg) 4

Structure Drawing (mm)

Dome Type Fiber Optic Splice ClosureDome Type Fiber Optic Splice Closure

PLC Splitter Tray (option)

Dome Type Fiber Optic Splice Closure

PLC splitter tray is optional (max support to 2x16 mini type)

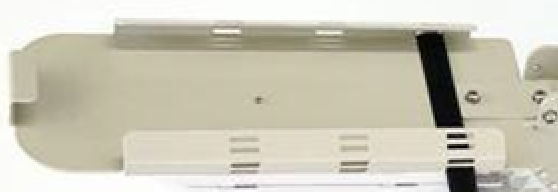

Loose Tube Storage Plate

Dome Type Fiber Optic Splice Closure

Installation

Dome Type Fiber Optic Splice ClosureDome Type Fiber Optic Splice Closure

Pole mount Wall mount

Standard Accessories

Dome Type Fiber Optic Splice Closure

Dome Type Fiber Optic Splice Closure

Optional accessory

Dome Type Fiber Optic Splice Closure

Ordering Information

Example:

DA-FOSC-DM288-P-829-C-144F

Dome type, Mechanical sealing; 144 fibers, 6 trays of 24 fibers/tray included; 7 cable ports (1 oval cable port and 6 round cable ports); max capacity: 288 fibers; material: PP+GF, dimensions (mm): 610 (H)*260 (D)

DA-FOSC-DM288-P-829-C-288F

Dome type, Mechanical sealing; 288 fibers, 12 trays of 24 fibers/tray included; 7 cable ports (1 oval cable port and 6 round cable ports); max capacity: 288 fibers; material: PP+GF, dimensions (mm): 610 (H)*260 (D)

Ps: The actual fiber core number shall be subject to the contract
