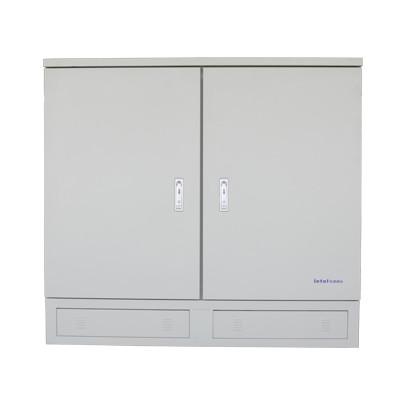

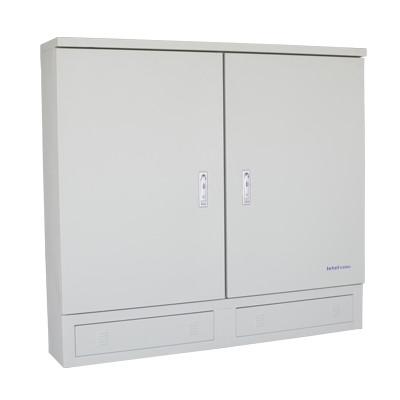

576 Core Steel Double Door Outdoor Fiber Distribution Cabinet
576 Core Steel Double Door Outdoor Fiber Distribution Cabinet
576 Core Steel Double Door Outdoor Fiber Distribution Cabinet
576 Core Steel Double Door Outdoor Fiber Distribution Cabinet
576 Core Steel Double Door Outdoor Fiber Distribution Cabinet
576 Core Steel Double Door Outdoor Fiber Distribution Cabinet
Specifications
Brand Name :
Dawnergy
Model Number :
DA-FDH-576 Steel
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
600
Payment Terms :
T/T
Supply Ability :
100 PER DAY
Packaging Details :
Wooden Box
Product :
Fiber Distribution Hub/Cabinet
Material :
Stainless Steel
Protection Level :
IP65
Shock Resistance :
IK10
No.of fiber :
576 cores
Application :
FTTH FTTB FTTX Network
Fiber Port :
SC FC LC ST
Description

576 Core Steel Double Door Outdoor Fiber Distribution Cabinet

Dawnergy’s Fiber distribution cabinet enables telecom operator & service providers to maintain and manage the distribution of connection in a disciplined manner for FTTX network. The cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections.

Fiber distribution cabinet is mainly used for connection, distribution and dispatching of communication optical cable from offices to optical distribution nodes, providing a safe, reliable but flexible optical fiber/cable management system for communication networks, especially for access networks.

Overview

Fiber distribution cabinet enables telecom operator & service providers to maintain and manage the distribution of connection in a disciplined manner for FTTX network. The cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections.

Main Features

•Different capacity, available in 576-fiber distribution
• Plug in type Splitter
•Fully-closed structure, dust-resistance, waterproof, anticorrosive, anti-theft,Beautiful
• Fiber bend radius, not less than 40 mm.
•Available in ribbon and non-ribbon cable, meeting the requirements for using ribbon cables and non-ribbon cables.
•Safe and reliable function of storing and protecting optical fibers.
•Clear labeling on each optical fiber
•Modular design; flexible configuration and convenient capacity expansion.
•Separate module, easy for implementation and maintenance.
• Reliably fixing, stripping, and grounding and protecting optical cables device
•Stainless Steel, available in ground-mounting ,wall-mounting and pole-mounting.
•IP 65 protection level

Specifications

Parameters Specification
Material Cabinet Cold rolled steel
Shell 2.0mm Cold rolled steel sheet with 80um paint
Cable Fixing Board SUS304
Mounting Pillar 1.5mm Cold rolled steel sheet
Plastic Part UL94V0
Available Install Equipment Splitter trays or splice trays with angular SC/APC or SC/PC adapters
Installation Type Ground
Protection Rating IP65
Operating Temperature (°C) -40~ +60
Relative Humidity ≤95％ (@+40℃)
Working Environmental Atmosphere Pressure (kpa) 70~106
Uncut Cable Inlet Ports 2
Grounding Device Yes
Dimensions (mm) (L×W×H) Cabinet (with base) 1510 x 750 x 470 (for 576F)
Package carton package with wooden pallet

Configuration

576F FDH:

18pcs 2x32 angular SC/APC PLC splitter tray

Total 576F angular adapters integrated splice trays (12F per tray) for Distribution side

Total 96F angular adapters integrated splice trays (12F per tray) for Feeder side

2x32 angular SC/APC PLC splitter tray

Material: ABS

Size (W x H x D) (mm): 287 x 50 x 180

576 Core Steel Double Door Outdoor Fiber Distribution Cabinet 576 Core Steel Double Door Outdoor Fiber Distribution Cabinet

24F angular SC/APC integrated splice tray (two layers, 12F per layer)

Material: ABS

Size (W x H x D) (mm): 287 x 25 x 180

576 Core Steel Double Door Outdoor Fiber Distribution Cabinet 576 Core Steel Double Door Outdoor Fiber Distribution Cabinet

Drawing (mm)

576 Core Steel Double Door Outdoor Fiber Distribution Cabinet

Ordering Information (SMC is option)

Model Name Description
DA-FDH-576F-x Outdoor Network Cabinet Outdoor network cabinet; Material: 2mm Cold rolled steel; With base; SUS304 cable fixing board; Dimensions (mm):1590(H)×750(W) ×520(D); carton package with wooden pallet; 18pcs 2x32 angular SC/APC PLC splitter tray, Total 576F integrated splice trays (24F per tray, each tray have two lever, each lever 12F) for Distribution side, Total 4*24F integrated splice trays (24F per tray, each tray have two lever, each lever 12F) for Feeder side, full loaded angular SC/APC adapters and SC/APC pigtail; logo printing
