IP68 Fiber Optic Splice Closure

Product Description

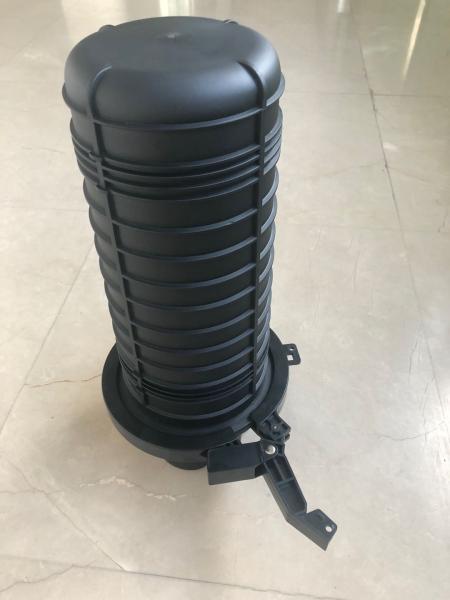

This dome closure is used in aerial,duct,wall-mounting,pole mounting applications, for the straight-through and branching splice of the fiber cable(Ф7-Ф42). It has heat shrinkable sealing structure with 7 entrance ports on the end (6 round ports and 1 oval port).

Product Feature

• The body adopt modified plastic MPP,which is high strength and corrosion resistance,has longer lifetime and excellent sealing performance.

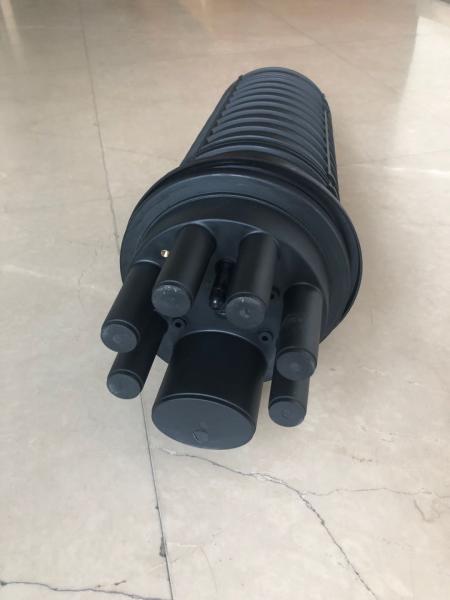

• It has 7 cable ports in total,6 Φ20mm round cable ports,and 1 oval port which can let in and out 1pc Φ42mm cable or 2pcs Φ20mm cables,as well as for few small size cables at the same time.
• The closure can be reopened,which is maintenance friendly.It can work well in the environment of -40℃～＋65℃ and guarantee the good sealing performance.
• Voltage Strength:under 15KV direct current,without breakdown or flashover phenomenon.
• Insulation Resistance:≥2×10⁴MΩ
• Tensile Force:≥800N
• Leakproofness:inflate the closure,making internal pressure to 100Kpa,then put the closure into the water over 15min,without any bubbles or pressure drop happened.
• Impact Strength:can bear 16N.m.after 3 impact times,there is no crack on the body.
• Size DxH:Ф230mmx450mm
• Weight:2.1Kg
• Oval port diameter:Φ42mm;round port diameter:Φ20mm

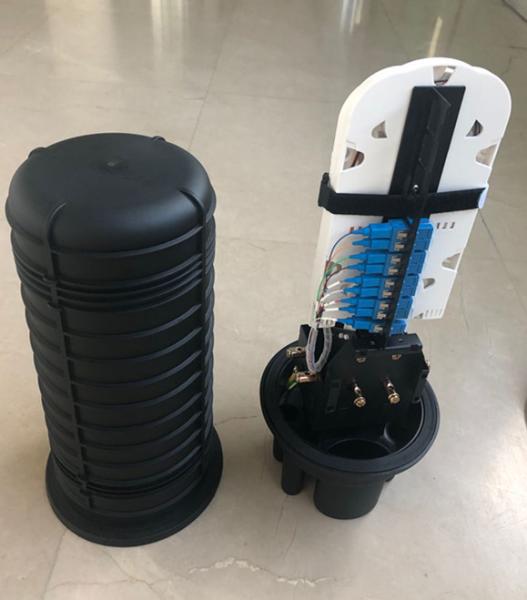

• Max capacity:144cores,6pcs 24c splice tray.
• Splitting:1x16/1x32 mini PLC splitters and 18pcs/36pcsSC adaptors
• Assembled with valve core and grounding device.

Packing List

• Dome closure:1set
• Hanging set:1set(optional:pole mounting,wall mounting or aerial)
• Heat shrinkable tube:2~144pcs(according to the real capacity of the closure)
• Hose clamp13~19: 8pcs
• Shrinkable tube65/19-150: 1pc
• Shrinkable tube28/6-150:6pc
• Manual:1pc
• Certificate of Approval:1pc
