Handheld Light Source Fiber Optic Cable Tools Multi Meter With Visual Fault Locator

This portable optical power meter with red light source is an accurate portable instrument with long service time specially designed for the installation, operation and maintenance of fiber-optical network. It features fine appearance, controllable backlight display, automatic power off, supper wide testing range for optical power, high accuracy, self-calibration and universal interface. What’s more, the linearity index(mW) and nonlinear index (dBm) will be displayed in a same screen. The optical power meter can be used alone for saving power.

Product features

The optical power meter with red light of 10mW or 1mW features open self-calibration which could be operated by the user.

With two AA batteries, the optical power meter can work continuously for 40 hours. It can work continuously if working with a red light source of 10mW, or 42 hours with a red light source of 1mW.

the linearity index(mW) and nonlinear index (dBm) will be displayed on the same screen of the optical power meter.

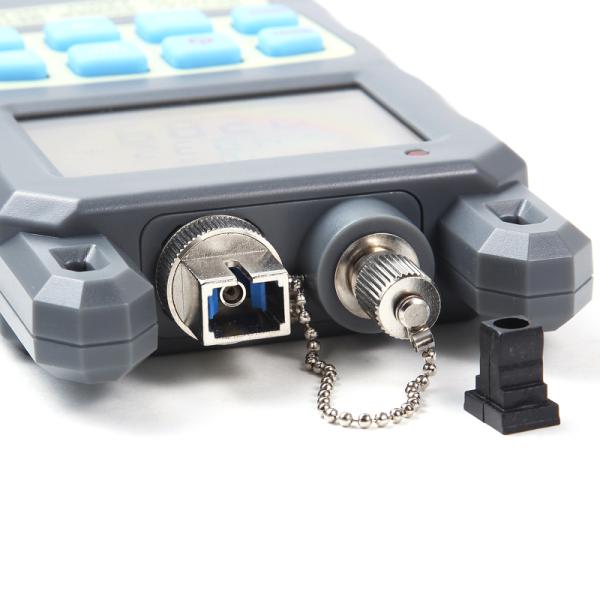

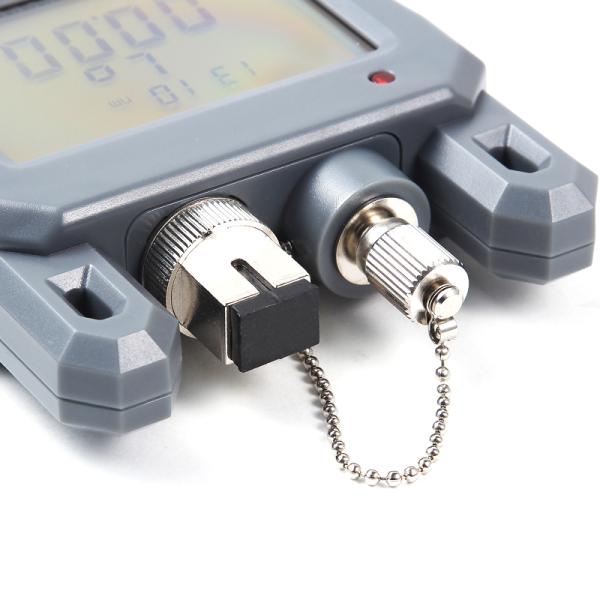

Special universal interface for FC/SC/ST, easy to transformation.

Optional auto off.

Optional backlight display.

Optional steady/flashing red light.

Technical parameters of the optical power meter with red light source

Attentions:

1. Wavelength range: the optical power meter can work with specified parameters within the standard working wavelength λ, ranging from λmin to λmax.

2. Measurable power range: the range of optical power which could be measured with specified parameters.

3. Uncertainty: the error between the test result for certain optical power and which for standard optical power.

4. Please do not stare at the laser for avoiding harm for the eyes.
