Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Specifications
Brand Name :
Hanxin or OEM
Model Number :
SMA
Certification :
ROHS,ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS per week
Delivery Time :
3-7 working days
Packaging Details :
plastic bag and carton
Application: :
military,medical
Type :
energy optical fiber patch cord
Color :
Black

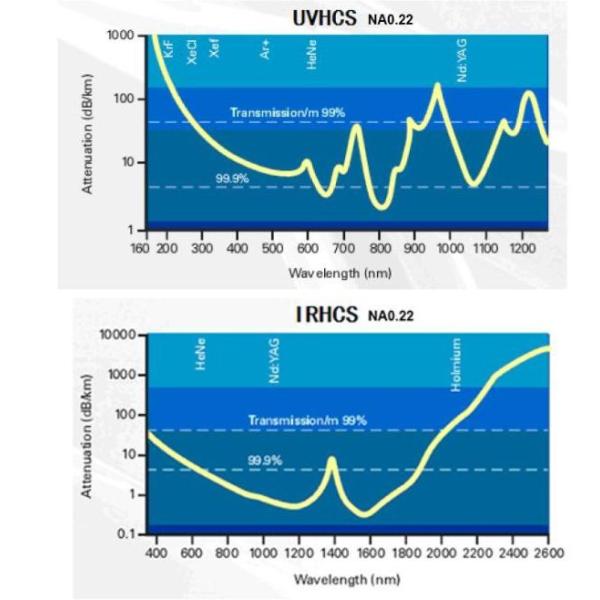

Wavelength :
200-1200nm or 400-2200nm
Numerical Aperture :
0.22±0.02
Core Diameter(um) :
105-1000um
Description

Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906

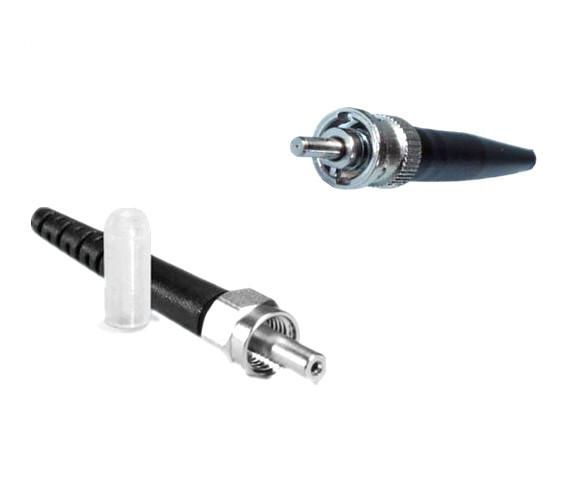

Fiber SMA 905 Connectors from the "Subminiature A " hence SMA, microwave connector. The Fiber SMA 905 Connector model 905 had a machined ferrule exactly 1/8 inch in diameter that mated in a machined adapter. When the adapters are not precise enough for better fibers, A necked-down ferrule that mated with a Delrin adapter for better insertion loss performance. These fiber optic connectors are still in use on some military and industrial systems. You can give us your special requirements for the SMA hole and other non-standard parameters.

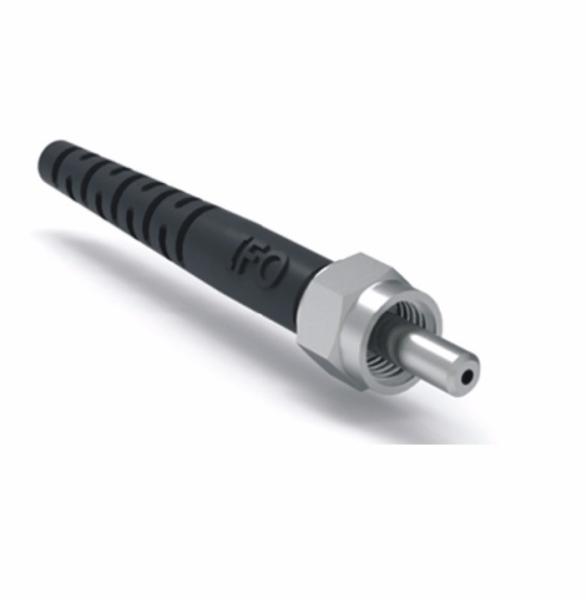

The VICHIN SMA 905 connector is a non-contact connector typically used in medical, industrial, and military applications. The connector is offered standard with a 127 um ID, it can be easily customized to accept larger ID fibers sometimes used in these markets and industrial laser applications


Feature

Good light through rate
Excellent anti fatigue
Large core diameter optical energy
Tensile strength

Application

Optical measurement applications
Medical optical detection equipment
Detection of food safety
Factory automation
Cars, planes and military application

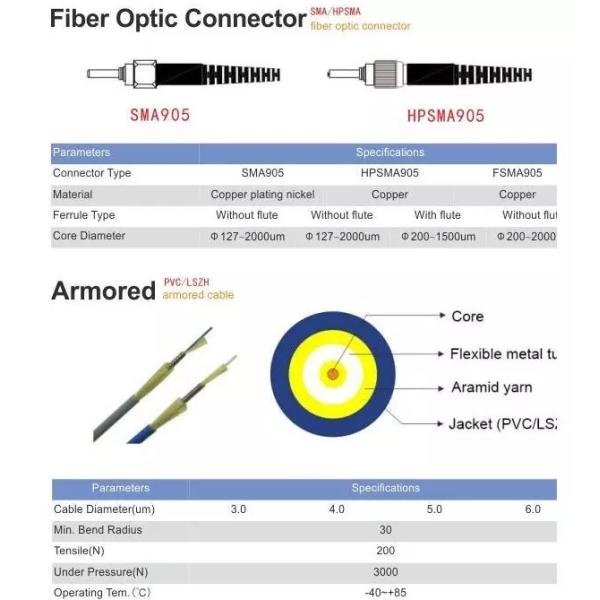

Type Parameters Single-mode Multimode
Connector Type SMA Fiber Optic Connector
Polishing Type PC PC
Insertion Loss (dB) ≤0.2 ≤0.25
Return Loss (dB) ≥45 N/A
Repeatability (dB) IL≤0.2 RL≤5 IL≤0.1
Vibration (dB) IL≤0.2 dB RL≤5dB IL≤0.2 dB
Exchangeability (dB) IL≤0.2 dB RL≤5dB IL≤0.2 dB
Tensile Strength F200N
Durability n=1000
Operation Temperature (°C) -40°C~+80°C
Ferrule Material Metal
Cable Diameter (mm) Ø3.0


Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906

Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
Military Medical Fiber Patch Cord Connectors SMA 903 / SMA 905 / SMA906
