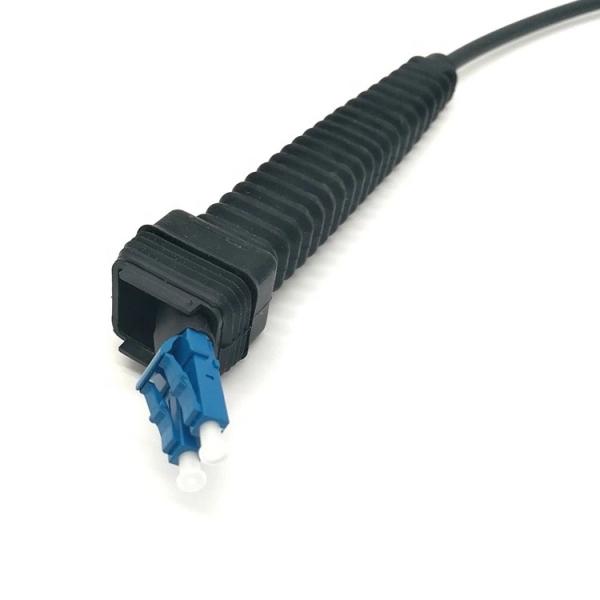

NSN Boot Waterproof Fiber Patch Cord Connectors 90 Degree DLC Connector

Next generation WiMAX and Long Term Evolution (LTE)Fiber/Power/Signal To The Antenna (x-TTA) connectivitydesigns require rugged cable assemblies for outdoor use.For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.

For this specific application, the connector design will need to accommodate for a large tolerance in Z-direction.Furthermore, the connector shell must allow for easy one handed mating. This LC outdoor connector
sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the
broadest range of transceivers on the market. This unique feature allows end users to pick almost any transceiver they wish.

Application

WiMAX and LTE Base Stations
Remote Radio Heads (RRH)
Industrial outdoor applications
Robotics
Aerospace & Defense

Mechanical

Designed to meet 150 N cable retention
Designed to meet IP67
LC interface

Single- and Multimode
Bayonet style locking
Duplex LC interconnect MM or SM
No tools required
Operating temperature : -40ºC to +70ºC
Mating durability min : 100 cycles.

Key Features

Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode

Water proof, dust proof and corrosion resistant.
Expansion to RJ45 and Power possible
Plug has tolerance free design,fully free floating on Z-axis
No cable buckling during or after installation.
Cost effective metal die cast bulkhead
Field installable version available

Parametric performance Data Sheet
