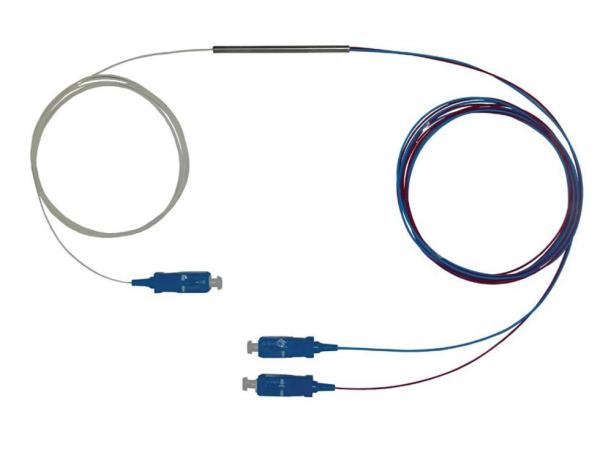

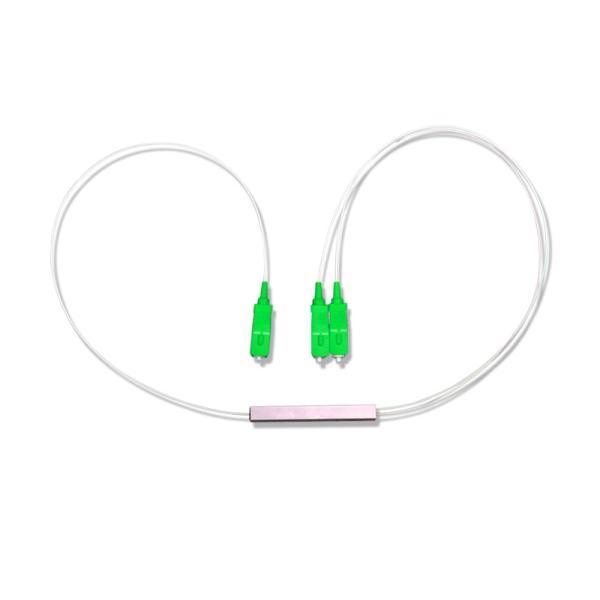

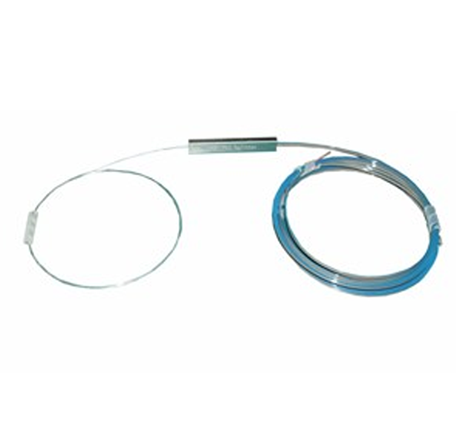

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
Specifications
Brand Name :
hanxin or OEM
Model Number :
1*2 mini splitter
Certification :
ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000PCS Per month
Delivery Time :
3-15 working days
Packaging Details :
pp bags or plastic box
Cable diameter :
0.9mm 2.0mm 3.0mm
Type :
1*2
Application :
FTTH FTTB FTTX PON CATV,FTTX Systems/PON Networks/CATV Links/Optical Signal Distribution
Connector type :
SCAPC
Wavelength :
1260-1650nm
Fiber length :
Customized
Description

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network

Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. It widely used in PON(EPON/GPON) networks to realize optical signal power splitting.

The products are Telcordia GR-1209 and GR-1221, IEEE 802.3 ah for EPON, 802.3 av for 10G-EPON ITU-T G.984

for GPON, G.987 for 10G-GPON.


- Low Insertion Loss
- Broadband Operation
- Excellent Uniformity
- Low Polarization Dependent Loss
- Low excess loss & High performance

Product Name 1x2 blockless PLC Splitter Insertion Loss 3.8dB
Connector without connector PDL 0.15dB
Pigtail Length 1 meters or customized Loss Uniformity 0.6dB
Pigtail diameter 900um input/output Operating Wavelength 1260~1650nm
Steel Tube Dimension 60x7x4 (mm) Return Loss 55dB
Fiber Type G657A1 or G657A2 Directivity 55dB
Operating temperature -40~85 °C Storage Temperature -40~85 °C
Operation Humidity 5 ~ 95%RH Storage Humidity 5 ~ 95%RH

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network

Application

- CATV
- Data Communication
- Fiber Optic Equipments & Systems

- PON System

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network

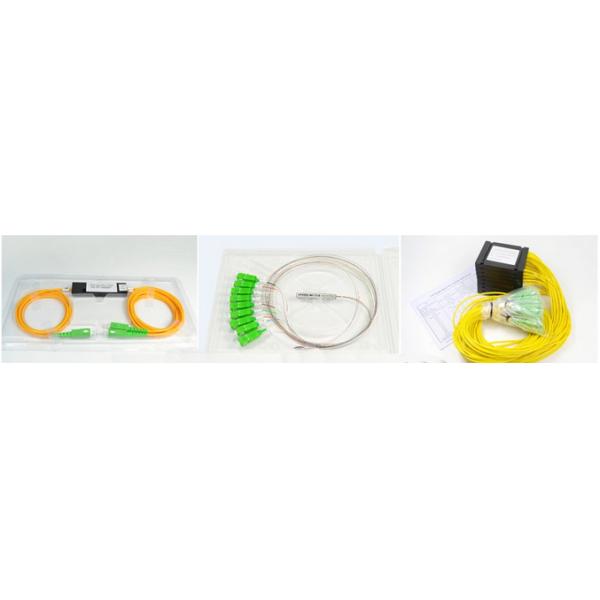

Packaging

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network

Mini Steel Tube Passive Optical Splitter Link All PLC 1x2 For Ftth Network
