German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg
German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg
German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg
German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg
Specifications
Brand Name :
Hanxin
Model Number :
SCAPC-18
Certification :
ISO9001
Place of Origin :
Shenzhen,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50PCS per week
Delivery Time :
3-7 working days
Packaging Details :
EPE and carton packaging
Application :
optic fiber polishing fixture
Function :
Fix the connector
Material :
German steel
Diameter :
174mm
Heat treatment :
50°
Capacity :
18
Description

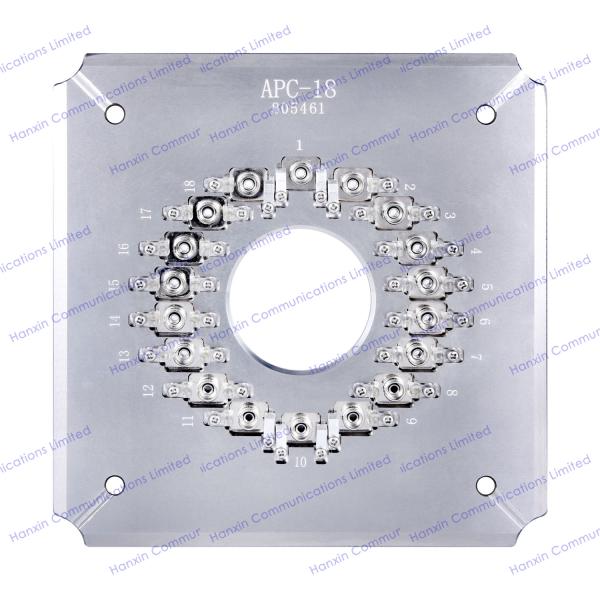

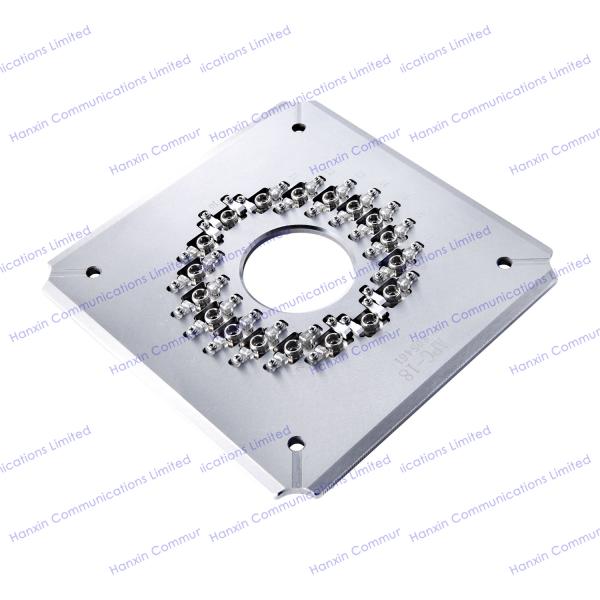

German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg

The fiber polishing fixture is IPC Structure, Independent compression of each connector. This fiber polishing fixture is high stability and good surface quality.fiber polishing fixture using high quality steel with heated treat, the hardened steel S2316 provide long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, MPO and E2000, FA, etc, and also according to the customer request.

Specifications

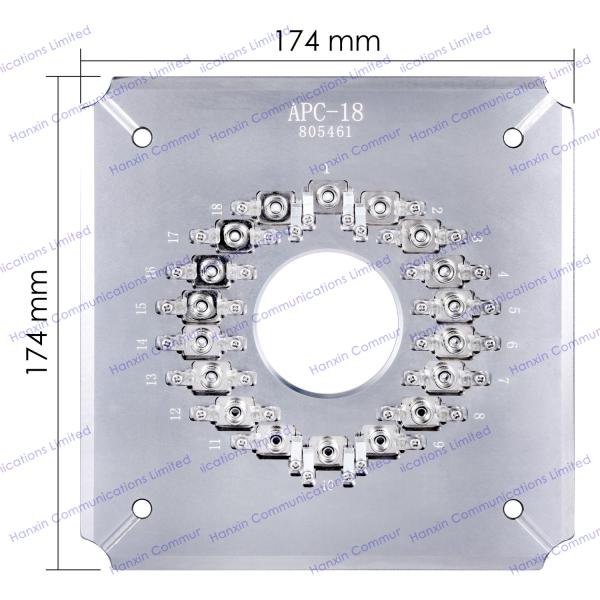

1. Machine Size 174*174MM
2. Net Weight 1.1kg
3. Capactiy 18 connectors one times
5. Application FCAPC connector polishing
6. Suitable Machine Four corner pressure polisher and SEIKOH GIKEN SFP-550 Serials
7. Materials

German steel

Features

1. high quality steel construction, high precision.

2.The interference rate is over 90%.

3., the use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.

4. each grinding disc can be fitted with a plurality of grinding heads (centers 8-12, four horns, 18-24 heads), and the production efficiency is high.

5. adapters interchangeable to extend the service life of the grinding disk.

6., three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable. The utility model saves the number of the grinding disk and saves the production cost.

7., grinding can be integrated grinding disk, also suitable for rework.

8., according to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.

German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg

Packaging

EPE and carton packaging

German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg

German Steel Fiber Optic Polishing Plate 18 Connectors One Times 1.1kg

All polishing jigs are 100% tested before shipment .
