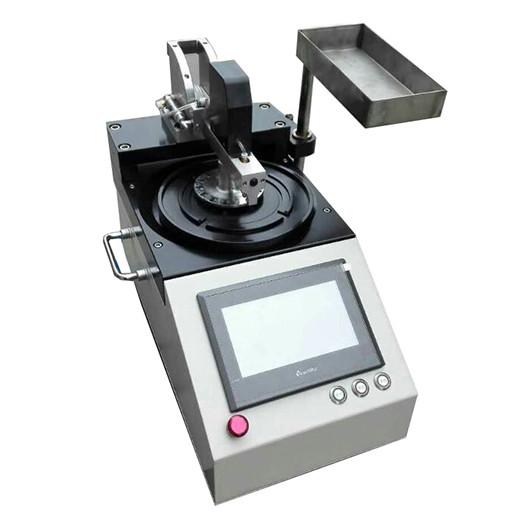

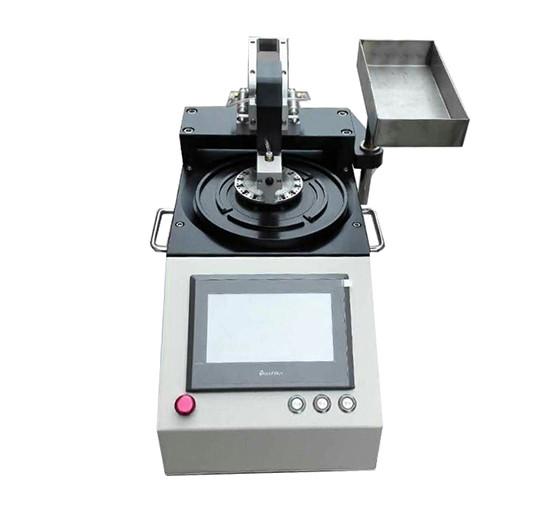

MPO / MTP Fiber Optic Equipment Domailler Fiber Optic Polishing Machine

HX-MPO-6 polishing machine isdeveloped and produced by our company for MTP/MPO patch cord and pigtail..can be used for many kinds of connectors,such as:FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,FC/APC,MT-RJ,E2000 etc. it is best for polishing MTP,MPO connectors.The polishing speed, polishing pressure and polishing time can be set separately in each process to ensure maximum process flexibility and optimal product quality. The polishing pressure is controlled by closed loop, and the stable precision can reach /-0.1LbS. Meanwhile, the time is controlled by the program controller, and the control precision is 0.1s.

Feature:

Pc-based 7-inch touch screen

Slow start, polishing compensation, program control. It can store 20 polishing processes, each of which supports 8 polishing processes.

Programmable pressure and speed of slow start function

Programmable polishing film counting function

Programmable machine maintenance unit

Pneumatic pressure control can be calibrated by feedback of pressure sensor

The pressure can be compensated automatically according to the jumper number on the fixture

speed Adjustable range is 10-200 RPM

Process can be stored to other machines by USB

Automatic alarm and stop when air pressure is low

For larger loads, the machine can polishing 24 MTP/MPO connectors together, and the 3D interference pass rate is over 98%.

Intuitive and humanized operation interface, real-time display of current grinding process, running speed, pressure, and can call any process at will.

Parameter:

1. Model:HX-MPO-6；
2. Voltage:AC220V to 24V；
3. Power:75W；
4. Size:50*26*40cm；
5. Machine Weight:30KG；

Notes:

A) after the adjustment of all functions, the parameter saving key must be pressed, otherwise the adjustment is invalid.

B) touch control is adopted in all control systems, whose control panel is liquid crystal touch screen. Hard objects or cutting tools are strictly prohibited to scratch on the panel during use, so as to avoid damage to the machine.

C) disassembling the machine or repairing without permission of the manufacturer is strictly prohibited. If there is any problem, please contact the manufacturer; otherwise, no warranty will be given.
