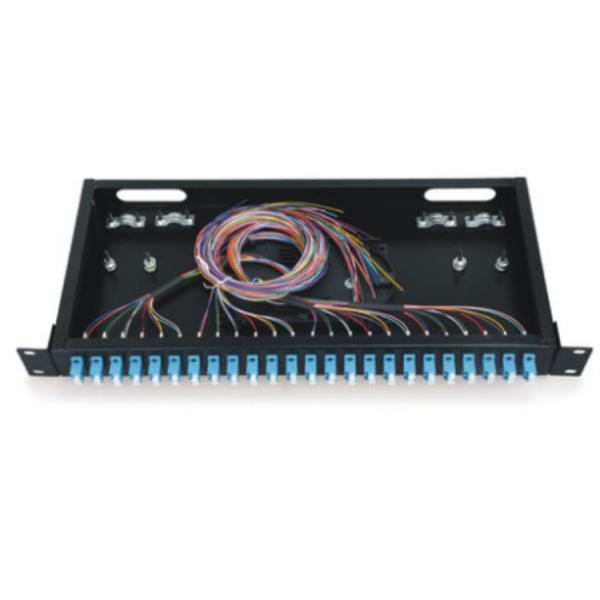

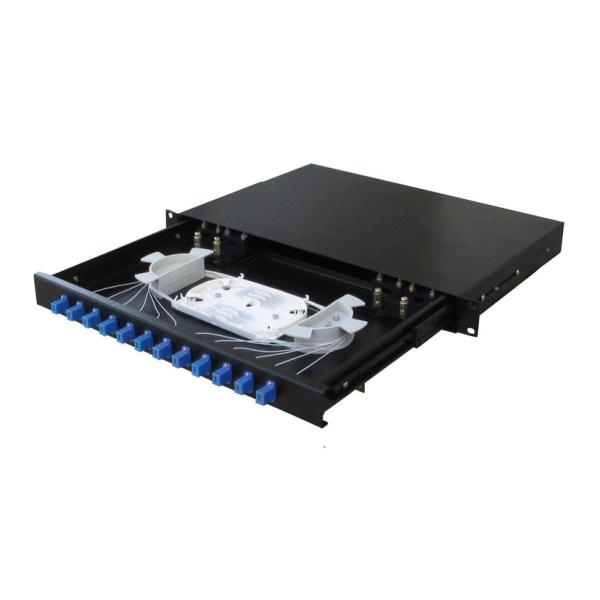

PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box
Specifications
Brand Name :
hanxin or OEM
Model Number :
6572002
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
Carton
Product name :
Fiber Optic Patch Panel/ODF
Application :
FTTH FTTB FTTX Network
Material :
Cold-rolled/Stainless steel
Dimension :
19inch
Capacity :
12/24/36/48/72/96 or customized
Color :
Black/Gray or Cusomized
Connector Port :
LC,SC,FC,ST etc
Installations :
Wall-mounted/Rack type
Description

PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box

Description

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fiber splicing, fiber termination, fiber optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fiber optic connections from damage.

Rack mount ODF is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19", which ensures that they can be perfectly installed on to the commonly used standard transmission rack.

Features

1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19''standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) Come with fiber optic pigtails and adapters
8) Easy for management and operation

Parameters

Parameters for 1U 19inch 24ports of mini ODF.
Max Capacity (Fiber Count)
24ports
Dimensions
19inch
Tray
24F splice tray
Material
Cold-rolled/stainless steel
Optional Accessories
SC, LC, FC, ST adapters, Pigtails
Color
Black /Grey or Customized
Installation Way
19inch Rank mount
Operation temperature
-40℃~65℃

PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box

PLC Splitter Fiber Patch Panel 19Inch Rack Mounted Termination Box

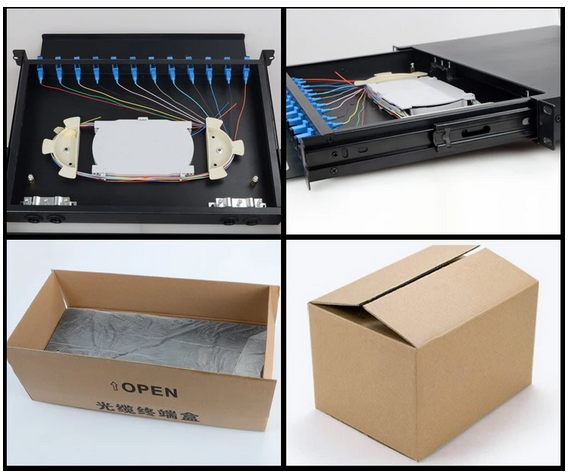

Packaging
