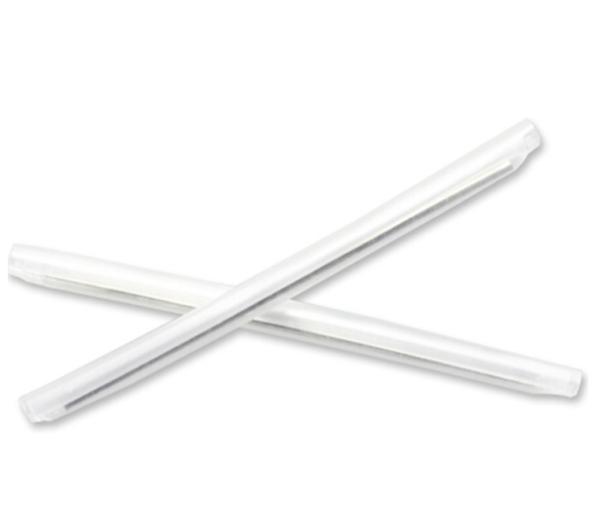

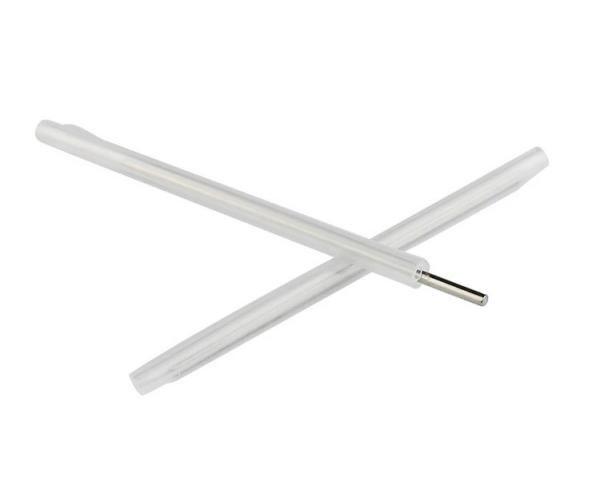

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
Specifications
Brand Name :
Hanxin or OEM
Model Number :
60611201
Certification :
Rohs ,ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000000pcs per week
Delivery Time :
3-7 working days
Packaging Details :
PP bag and carton
Coat Material :
EVA
Steel Material :
304
Application :
Restore coating or buffer of optical fiber after splicing.
Steel needle Dia :
1.0mm,1.2mm,1.5mm (Standard Single Fiber)
length :
40mm 45mm 60mm
Shrink Temperature :
90 - 110°C
Description

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves

Constrcture and Features:

1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties.

2. Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage.
3. Easily use and avoid any damages to the oprical fiber during installation.

4. Sealing structure provides good performanc e to the splicing in the environment with temperature and humidity.

5. Bellcore GR-1380 Compliant
6. RoHS & REACH Compliant

Operating Temperature : -50 - 100°C Shrink Temperature: 90 - 110°C

Single Fiber Series:

Part No. Steel Rod Fusion Tube Heat Shrink Tube Device
O.D.*Length I.D.*Length Length O.D. (after shrink) *Length
60200501 0.5*20mm 0.5*20 mm 20mm 1.5*20mm
60250501 0.5*25mm 0.5*25mm 25mm 1.6*25mm
60260501 0.5*26mm 0.5*25 mm 25mm 1.5*26mm
60300501 0.5*30mm 0.5*30 mm 30mm 1.6*30 mm
60301201 1.2*30mm 1.3*30 mm 30mm 2.5*30 mm
60350501 0.5*35 mm 0.5*35 mm 35mm 1.6*35 mm
60350701 0.7*35 mm 1.3*34 mm 35mm 2.3*35 mm
60400801 0.8*40 mm 1.3*40 mm 40mm 2.2*40 mm
60401001 1.0*36 mm 1.4*40 mm 40mm 2.4*40 mm
60401201 1.2*40 mm 1.1*40 mm 40mm 2.5*40 mm
60401202 1.2*35 mm 1.1*40 mm 40mm 2.5*40 mm
60451201 1.2*45 mm 1.3*45 mm 45mm 2.5*45 mm
60611001 1.0*57 mm 1.4*60mm 60mm 2.4*61 mm
60611201 1.2*56 mm 1.3*60mm 60mm 2.5*61 mm
60611501 1.5*56 mm 1.3*60mm 60mm 2.9*61 mm

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves

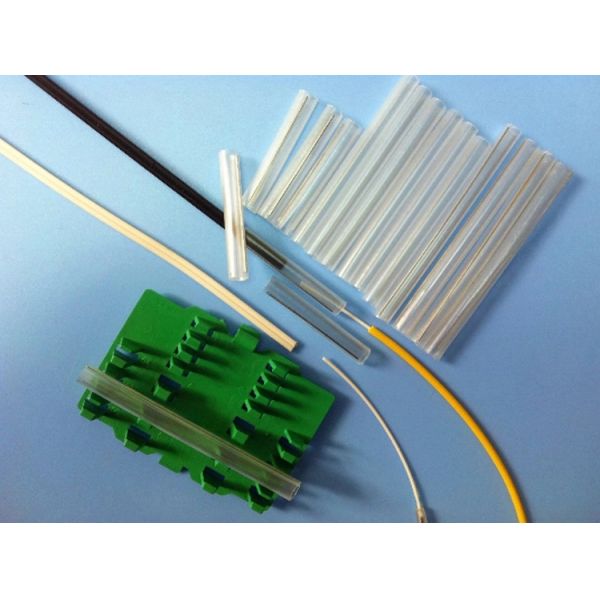

Application

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves

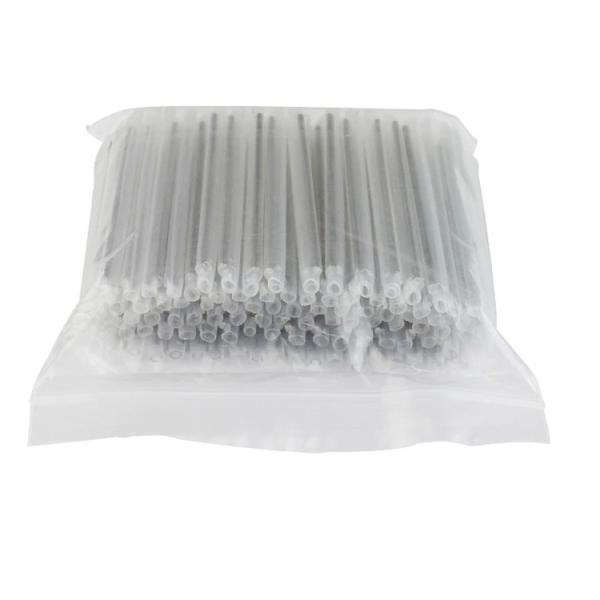

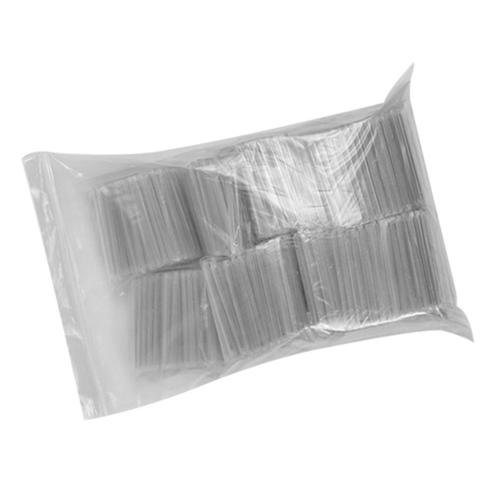

Packaging

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves

40MM 45MM 60MM Heat Shrink Tube For Fiber Optic Fusion Splice Protection Sleeves
