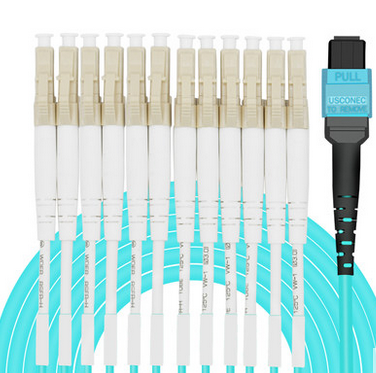

High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores
High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores
High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores
High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores
High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores
High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores
Specifications
Brand Name :
hanxin or OEM
Model Number :
MPO-LC-12
Certification :
ROHS, ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 pcs per week
Delivery Time :
3-10 working days
Packaging Details :
PP bag and carton
Connector type : :
MPO
Fiber Type: :
OM3
Connector color: :
Blue
Cable color: :
Blue
Cable jacket: :
PVC
Application: :
FTTX PON CATV
Description

High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores

1. What is the MPO/MTP features?

IEC61754-7 & GR-1435-CORE compliant.
Modular design, plug-locking structure,easy for test,Install,remove and adjust. Usually,single MTP / MPO connectors typically can accommodate 12 or more fiber, 1U height wiring space can accommodate up to 96 LC optical interface, Section. Saving Cabinet and rack space, easy cable management Kinds of fiber,cable available,to meet different customer needs.
Can choice of male,female.Achieve precise positioning with the adapter connected via Pin-pin positioning function,high stability.
Multi-core ferrule, small size, high speed and high capacity to meet the needs of optical fiber communication systems and high-efficiency high-density interconnect wiring. For future network infrastructure, highly scalable, supports Ethernet and Fiber Channel requirements 10/100-1Gbps.

2. What is the MPO/MTP type?

male(with Pin),female(without Pin)
Ferrule type Standard SM,Low loss SM;Standard MM,Low loss MM
Fiber core 4core,8core,12core,24core
Housing color Green(SM),Beige(MM),Yellow(SM Low loss),Blue( OM3 50/125 )
Polishing way PC,APC
Cable type Ribbon cable,Ribbon fiber,3.0mm Mini cable(250um12F,24F),0.9mm cable


3. What is the MPO/MTP test requests?


a. Endface request:

400 X Defect description Allow quantity
Fiber(9um,50um,62.5um) White scratches ≤3um No limited
Spot ≤2um 5 PCS
Defect / No allowed
Cladding
(62.5-125um)		 White scratches ≤3um No limited
≤5um 1 PCS
Black scratches ≤3um 2 PCS
Black spot ≤2um No limited
≤5um 3 PCS
Defect ≤2um Around no limited
≤15um Total length is less than the side length 1/4
Plastic ring / No limited

b. Performance:

MPO/MTP SM standard ferrule SM low loss ferrule MM standard ferrule MM low loss ferrule
IL Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 0.35dB
RL APC≥50dB ≥ 25dB ≥ 35dB
PC ≥ 40dB
Repeatability ≤0.30dB(Plug more than 500 times) 0.30dB(Plug more than 1000 times)
Interchangeability ≤0.30dB(With either a matching connector)
Tensile strength ≤0.30dB(Maximum tension 66N)
Shock ≤0.30dB(10~55Hz)
Temperature Range -40°C ~ +75°C


c. Interference indicators:

MPO/MTP Connector Dimension 3D Test
Radius of Curvature X ≥2000mm ,Y ≥50mm
Fiber Height 1000~4000 nm
Endface Angle X ±0.3° ,Y ±0.3°
Core Dip ±300nm


d. Length Tolerance:

Length(M) Tolerance
≤10 + 10CM
10<L≤30 + 15CM
>30 + 10%

High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores

High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores

High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores

High Speed OM3 Fiber Optical MTP Trunk Cable MPO Patch Cord 12 Cores

FQA

F

Q1. Can I have a sample order
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available


Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.


Q6. Is it OK to print my logo on product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
