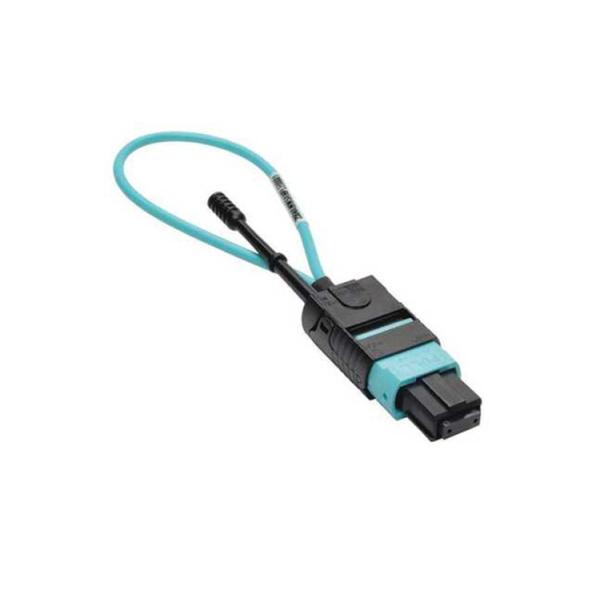

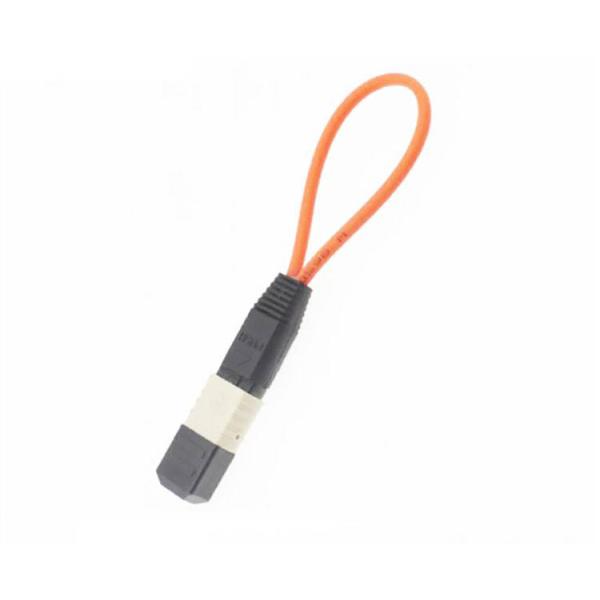

48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
Specifications
Brand Name :
hanxin or OEM
Model Number :
MPO
Certification :
ROHS, ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
PP bag and carton
Model Number: :
MPO
Fiber Type: :
12 cores 24cores
Cable jacket: :
PVC/LSZH
Application: :
FTTX PON CATV
Description

48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing

Applications:

Equipment interconnection

Device pig-tailingPremise networks

Patch panel applications

Communications connections

Loopback for network components testing

Connector Performance Specifications:

Model SM MM
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing Color

Standard (green),

Elite (Yellow)

Standard(Beige)

Elite(Auqa)
Insertion Loss Standard type less than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >30dB
Durability (500 matings) less than 0.2dB
Test Eavelength 1310/1550nm 850/1300nm

Fiber Cable Perfomance Specifications:

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter 3.0mm 5.5mm or customized
Jacket Color Yeloow, Orange, Aqua, Purple
Jacket Material OFNR, OFNP, PVC, LSZH
Tensile Strength 500N
Operating Temperature -20 to 70 ℃
Storage Temperature -40 to 75℃

48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing

48 Core Single Mode MTP MPO Cable FTTH MPO Multimode Fiber Optic Loopback For Testing
