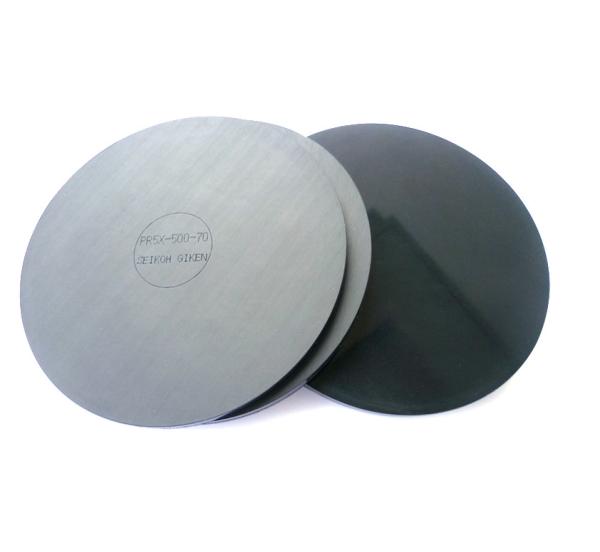

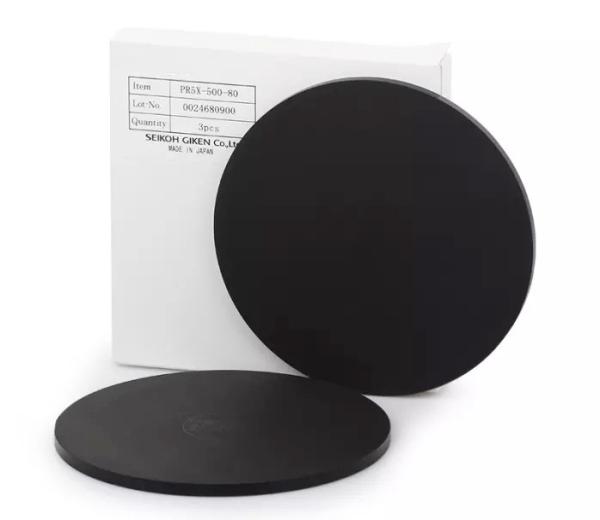

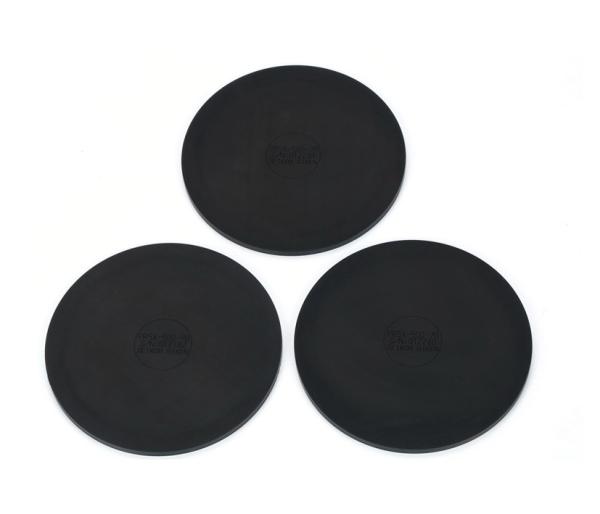

Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
Specifications
Brand Name :
Hanxin or OEM
Model Number :
52338
Certification :
ISO9001
Place of Origin :
Shenzhen ,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 pcs per week
Delivery Time :
3-7 working days
Packaging Details :
EPE and carton packaging
Application :
Polishing
Materail :
Rubber
Color :
Black
Service life :
3-6 Months
Hardness :
60° 70° 80° 90° 65°75° 85° 95°
Size :
110MM 127MM
Description

Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black

Description

Rubber O.D.: 4.3"(110mm) or 5''(127mm)
Thickness: 5.0mm, 4.0mm or 2.5mm
Thic. Tolerance: ±0.1mm
Durometer: 40, 50, 60, 70, 75, 80, 85, 90 Duro

Feature:

Special designed for polishing spherical surface of fiber connectors
Surface hardness flat and even

100% tested for hardness and parallelism A5

Have different hardness to choose: 500-50, 55, 60, 65, 70, 75, 80, 85

Have different depths to choose: 5mm 4.8mm, 2.5mm, etc.

Good wear resistance, the repeatability can reach 30000 times at least

Good for 100% 3D test

Advantage

Suitable for fiber connector grinding, the connector includes ceramic ferrule, MTP, MPO and other non-standard connectors;

Widely used in ordinary four-angle pressure grinder and Seiko technology SFP-550 series grinder;

There are many different degrees and thicknesses for customers to choose from;

The surface of the pad is smooth and smooth, and the flatness is 2-5um;

The special surface helps the abrasive paper to stick and is resistant to wear;

Helps improve fiber endface yield and 3D yield.

Suggestion:

To save cost, you can use both the Seikoh Giken polishing rubber pads and the good quality pads made in China.

Application:

- For polishing many kinds of fiber optic connectors, such as fiber optic ferrules of SC, LC, ST, FC and even MPO MT type.

- Applied in the following polishing machines:Squared type Fiber Optic Splicing Turmeric Polishing Machine----Central Pressurized Fiber optic polishing machine---- MPO polishing machine

Order Information Guide:

List of Polishing Rubber Pad Seikoh Giken

ITEM Part Number

Size

Diameter

 Thickness Material

Hardness

(Shore Hardness)

 Packaging
PAD SFP-550 Series PG5X-500-60 127mm 5mm Rubber 60 Shore Hardness 3 pcs / set
PAD SFP-550 Series PG5X-500-65 127mm 5mm Rubber 65 Shore Hardness 3 pcs / set
PAD SFP-550 Series PG5X-500-70 127mm 5mm Rubber 70 Shore Hardness 3 pcs / set
PAD SFP-550 Series PG5X-500-75 127mm 5mm Rubber 75 Shore Hardness 3 pcs / set
PAD SFP-550 Series PG5X-480-80 127mm 4.8mm Rubber 80 Shore Hardness 3 pcs / set
PAD SFP-550 Series PG5X-500-85 127mm 5mm Rubber 85 Shore Hardness 3 pcs / set
PAD SFP-550 Series PG5X-500-90 127mm 5mm Rubber 90 Shore Hardness 3 pcs / set
For more, you can choose..... 110mm 5mm Rubber 55/60/65/70/75/80/85/90 available 3 pcs / set

Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black

Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black

Rubber Fiber Optic Materials Fiber Optic Polishing Pad Seikoh Giken Black
